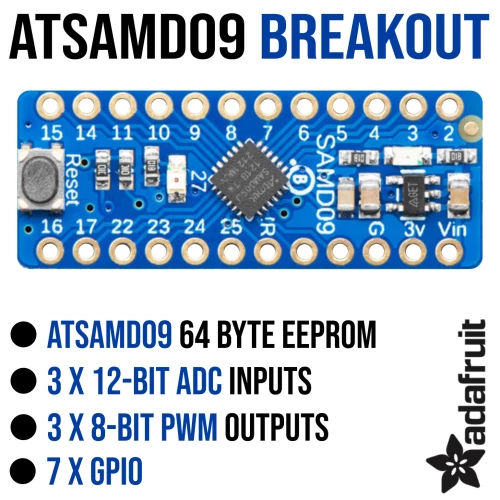

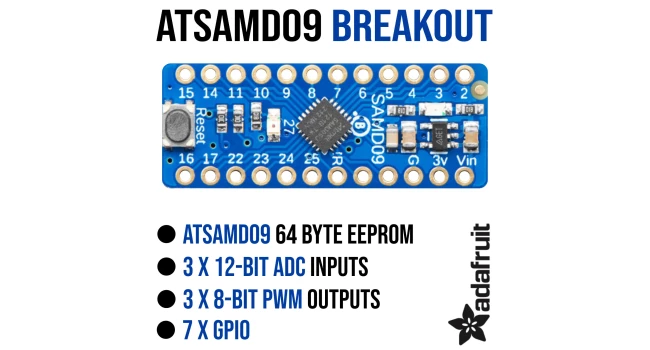

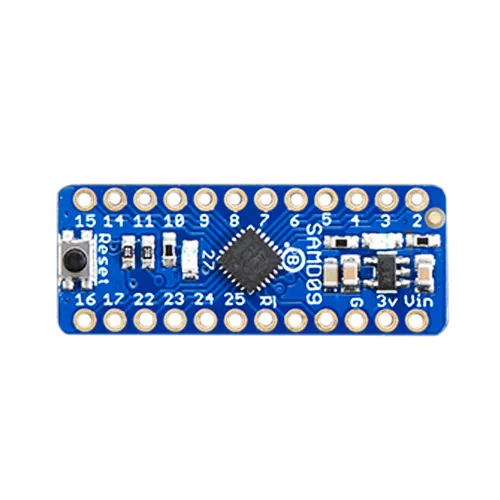

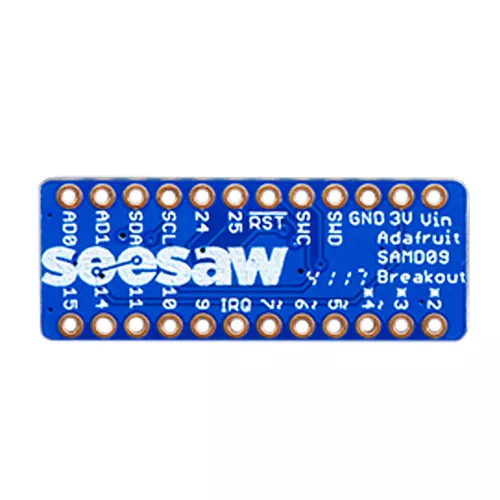

Adafruit ATSAMD09 Breakout + Seesaw
Adafruit seesaw is a near-universal converter framework which allows you to add and extend hardware support to any I2C-capable microcontroller or microcomputer. Instead of getting separate I2C GPIO expanders, ADCs, PWM drivers, etc, seesaw can be configured to give a wide range of capabilities. For example, our ATSAMD09 breakout with seesaw gives you:
- 3 x 12-bit ADC inputs
- 3 x 8-bit PWM outputs
- 7 x GPIO with selectable pullup or pulldown
- 1 x NeoPixel output (up to 340 pixels)
- 1 x EEPROM with 64 byte of NVM memory (handy for storing small access tokens or MAC addresses)
- 1 x Interrupt output that can be triggered by any of the accessories
- 2 x I2C address selection pins
- 1 x Activity LED
But you can reprogram and reconfigure the chip to have more or less of each peripheral - as long as it fits into the ATSAMD09D14's firmware. For example, there's also a UART converter but it isn't included in the default firmware.

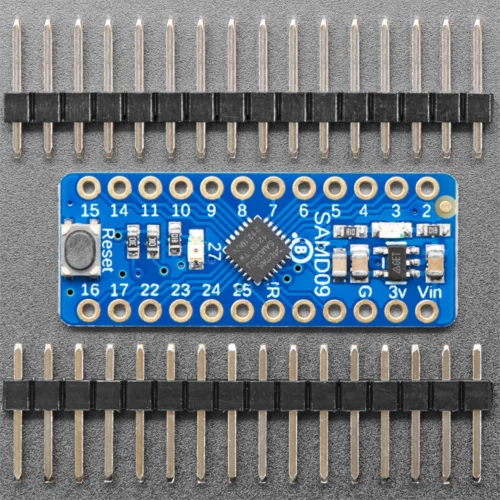

The ATSAMD09 breakout is great for development of seesaw capabilities or you can use it as-is to give your Raspberry Pi or ESP8266 more hardware support. Each breakout comes with the assembled and tested board, as well as some header strips.
Product Video
Quick Spec
- Uses I2C address 0x49 - can be changed to 0x4A, 0x4B or 0x4C
- Product Dimensions: 32.0mm x 12.0mm x 3.5mm
- Product Weight: 1.6g
Resources
- Product Page
- Additional Information
- Seesaw Arduino Driver
- Seesaw CircuitPython Driver
- SAMD09 Datasheet
Shipping List
- 1 x Adafruit ATSAMD09 Breakout + Seesaw
Adafruit ATSAMD09 Breakout + Seesaw
- Brand: Adafruit
- Product Code: AF3657
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | Limited Stock | AS48 |
| Stellenbosch | Limited Stock | Z5140 |
We ship free of charge between branches to complete your order.
-
R101.00 (Inc Tax: R116.15)
Tags: adafruit, atsamd09, breakout, seesaw, convertor, extend, i2c
