Adafruit M4 Express SAMD51
The Adafruit ItsyBitsy M0 Express packs an ATSAMD21 Cortex M0 (48 MHz) into a tiny 35 x 18mm board with 23 GPIO pins (12 analog in, 1 analog out, 13 PWM), 6 power pins, and 2MB flash storage. It ships with CircuitPython pre-installed—just plug in (also MicroPython comnpatible), edit main.py in any text editor, and code without installing software. Also Arduino IDE compatible.
Quick Spec
- ATSAMD51 ARM Cortex-M4 @ 120 MHz with DSP & FPU
- 512 KB Flash, 192 KB RAM + 2 MB external SPI Flash
- 23 GPIOs with ADC, DAC, PWM, SPI, I²C & UART
- Dual 12-bit ADC and dual 12-bit DAC
- Native USB device support (CDC, HID, mass storage)
- UF2 bootloader – drag-and-drop programming (Arduino & CircuitPython)
Resources
- Product Page
- Pinouts
- ATSAMD51G19 Product page w/datasheets
- Fritzing object in the Adafruit Fritzing Library
- EagleCAD files on GitHub
- Additional Information

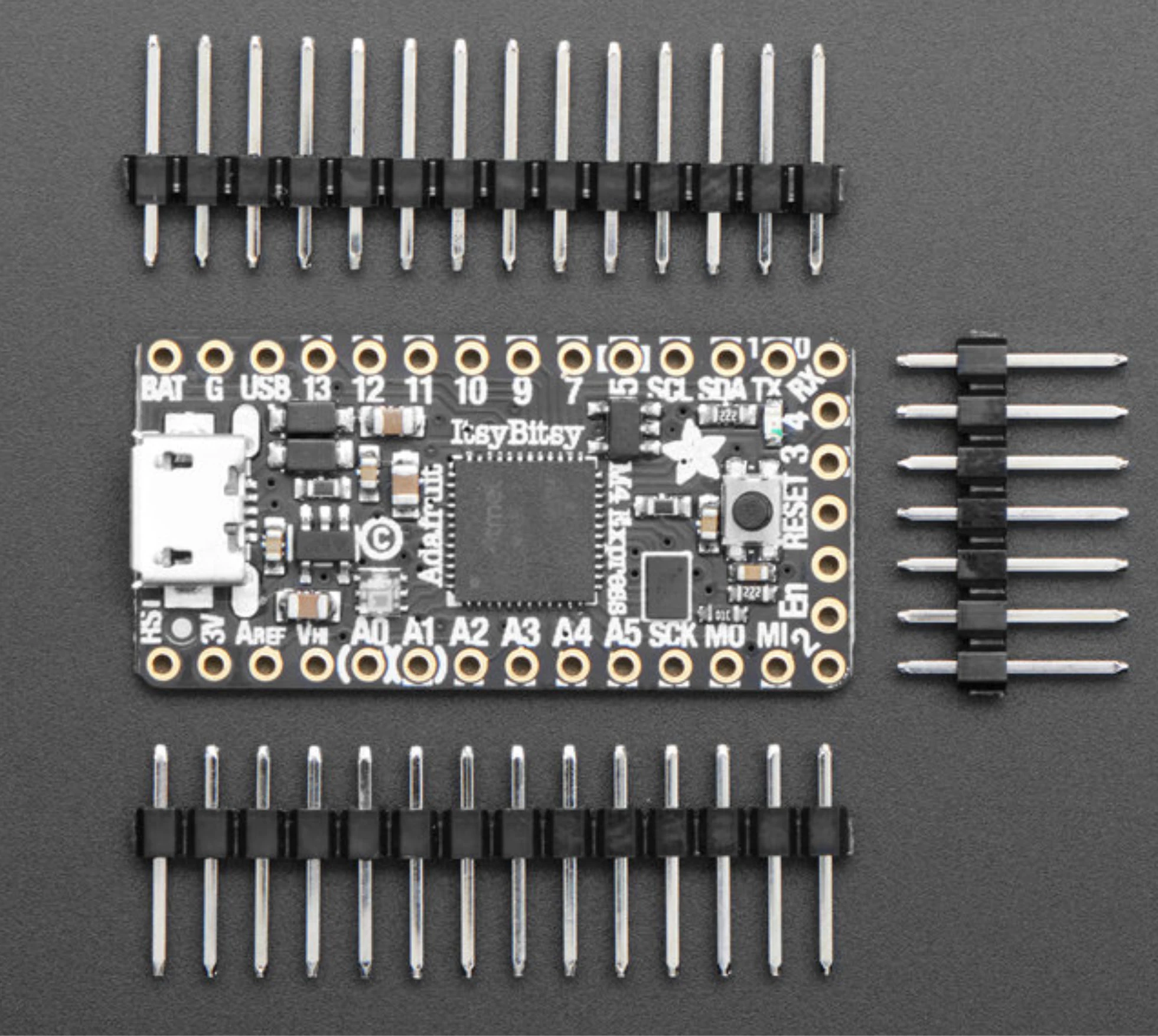

Shipping List
- 1 x Adafruit M4 Express SAMD51
- 1 x Header Set
Adafruit M4 Express SAMD51 120MHz
- Brand: Adafruit
- Product Code: AF3800
- Weight: 0.009kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | In Stock | AA129 |
| Stellenbosch | Limited Stock | Z3127 |
We ship free of charge between branches to complete your order.
-
R188.00 (Inc Tax: R216.20)
