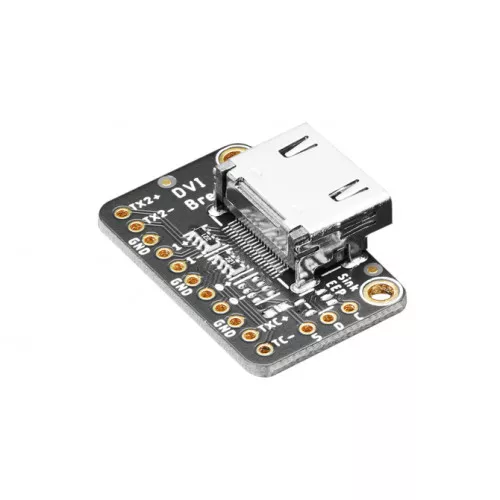

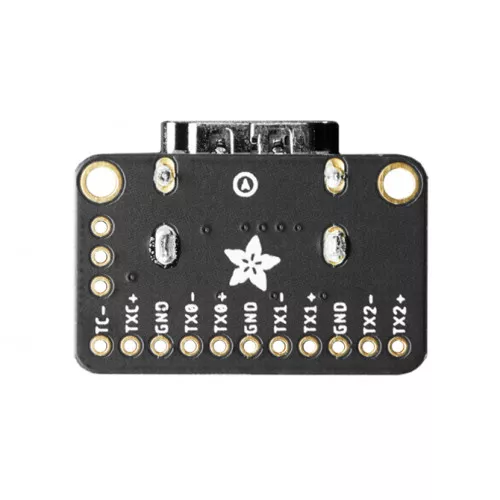

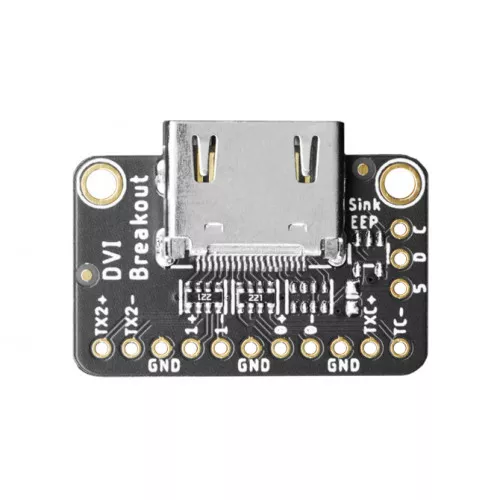

Adafruit DVI Breakout Board
Adafruit have designed this little breakout board after seeing some cool demos for the Raspberry Pi Pico driving an HDMI display. By using some fun 'abuse' of overclocking and the RP2040's PIO system a low-cost microcontroller can have great looking video output. Great for making demos, or just noodling around with digital video generation.
This breakout board has no active components on it. It's just a connector you can plug an HDMI/DVI cable into, and 220 ohm series resistors. There's a spot for an I2C EEPROM and some resistors.
Wire it up to the bottom pins of your Pico board with the following:
- GP12 to D0+
- GP13 to D0-
- GP14 to CK+
- GP15 to CK-
- GP16 to D2+
- GP17 to D2-
- GP18 to D1+
- GP19 to D1-
Product Video
Quick Spec
- Dimensions: 30.4 x 21.6 x 8.5mm
- Net Weight: 7g
Resources
Shipping List
- 1 x Adafruit DVI Breakout Board

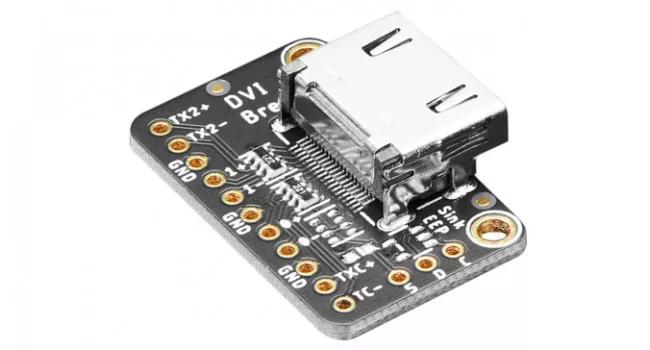

Adafruit DVI Breakout Board
- Brand: Adafruit
- Product Code: AF4984
- Weight: 0.007kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | In Stock | GG322 |
| Stellenbosch | In Stock | U97 |
We ship free of charge between branches to complete your order.
-
R42.00 (Inc Tax: R48.30)
