Adafruit CAN Pal - CAN Bus Transceiver

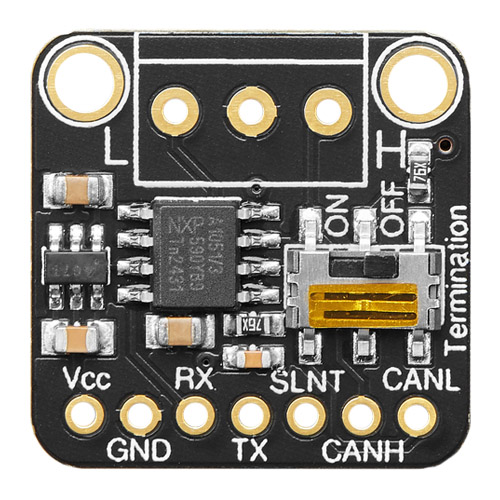

The Adafruit CAN Pal Transceiver facilitates seamless communication between boards with native CAN Peripheral support, converting 3V logic level signals to CAN logic levels. Ideal for ESP32, SAME51, STM32F405, Teensy 4, and more. CAN Bus, originally designed for automotive use, is now prevalent in robotics and sensor networks. With differential signaling, it ensures reliability in long-distance and noisy environments. This breakout pal boasts compatibility with 3.3V~5V logic, a built-in 5V charge-pump voltage generator, and a 3.5mm terminal block for easy access to data lines. Onboard termination resistors, with an easily switchable option, enhance versatility in various CAN scenarios.
Quick Spec
- Fully ISO 11898-2:2003 compliant
- Timing guaranteed for data rates up to 5 Mbit/s in the CAN FD fast phase
- Suitable for 12V and 24V systems
- Low ElectroMagnetic Emission (EME) and high ElectroMagnetic Immunity (EMI)
- VIO input on TJA1051T/3 and TJA1051TK/3 allows for direct interfacing with 3V to 5V microcontrollers
- Functional behavior predictable under all supply conditions
- Transceiver disengages from the bus when not powered up (zero load)
- High ElectroStatic Discharge (ESD) handling capability on the bus pins
- Bus pins protected against transients in automotive environments
- Transmit Data (TXD) dominant time-out function
- Undervoltage detection on pins VCC and VIO
- Thermally protected
- Dimensions: 20.3 x 20.2 x 4.0mm
Wiring Diagram
Resources
Shipping List
- 1 x Adafruit CAN Pal - CAN Bus Transceiver
- 1 x 3-Pin Screw Terminal
- 1 x 8-Pin SIL Male Header
Adafruit CAN Pal - CAN Bus Transceiver
- Brand: Adafruit
- Product Code: AF5708
- Weight: 0.003kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | In Stock | BB075 |
| Stellenbosch | In Stock | C0046 |
We ship free of charge between branches to complete your order.
-
R98.00 (Inc Tax: R112.70)
