Adafruit INA3221 3 Channel Power Monitor – 3.2A
The Adafruit INA3221 3-Channel Power Monitor is a versatile I2C-based module designed to measure voltage and current across up to three independent power rails with high accuracy. Built around the INA3221 chip, it enables both high-side and low-side current sensing, allowing you to monitor power usage without disrupting your system’s ground reference. With support for bus voltages up to 26V and ±3.2A current measurement per channel, this module is ideal for battery monitoring, solar applications, and multi-rail power systems.
Each channel features a precision 0.05Ω sense resistor and a 13-bit ADC, providing fine resolution and accurate readings with up to ±1% precision. The module reports both shunt voltage and bus voltage, giving a complete view of power consumption. It also includes programmable alert outputs, configurable averaging, and flexible I2C addressing. With pre-soldered terminal blocks and STEMMA QT/Qwiic connectors, integration is quick and beginner-friendly, making it suitable for platforms ranging from Arduino to Raspberry Pi.
Quick Spec
- Channels: 3 (independent power rails)
- Interface: I2C
- Bus Voltage Range: 0 – 26V
- Current Measurement: ±3.2A per channel
- Sense Resistor: 0.05Ω (1%)
- ADC Resolution: 13-bit (~0.4mA resolution)
- Accuracy: ±1% typical
- Supply Voltage: 2.7V – 5.5V
- I2C Address: 0x40 (default), configurable to 0x41
- Features: Programmable alerts, configurable averaging
- Dimensions: 38.6 × 22.9 × 10.5 mm

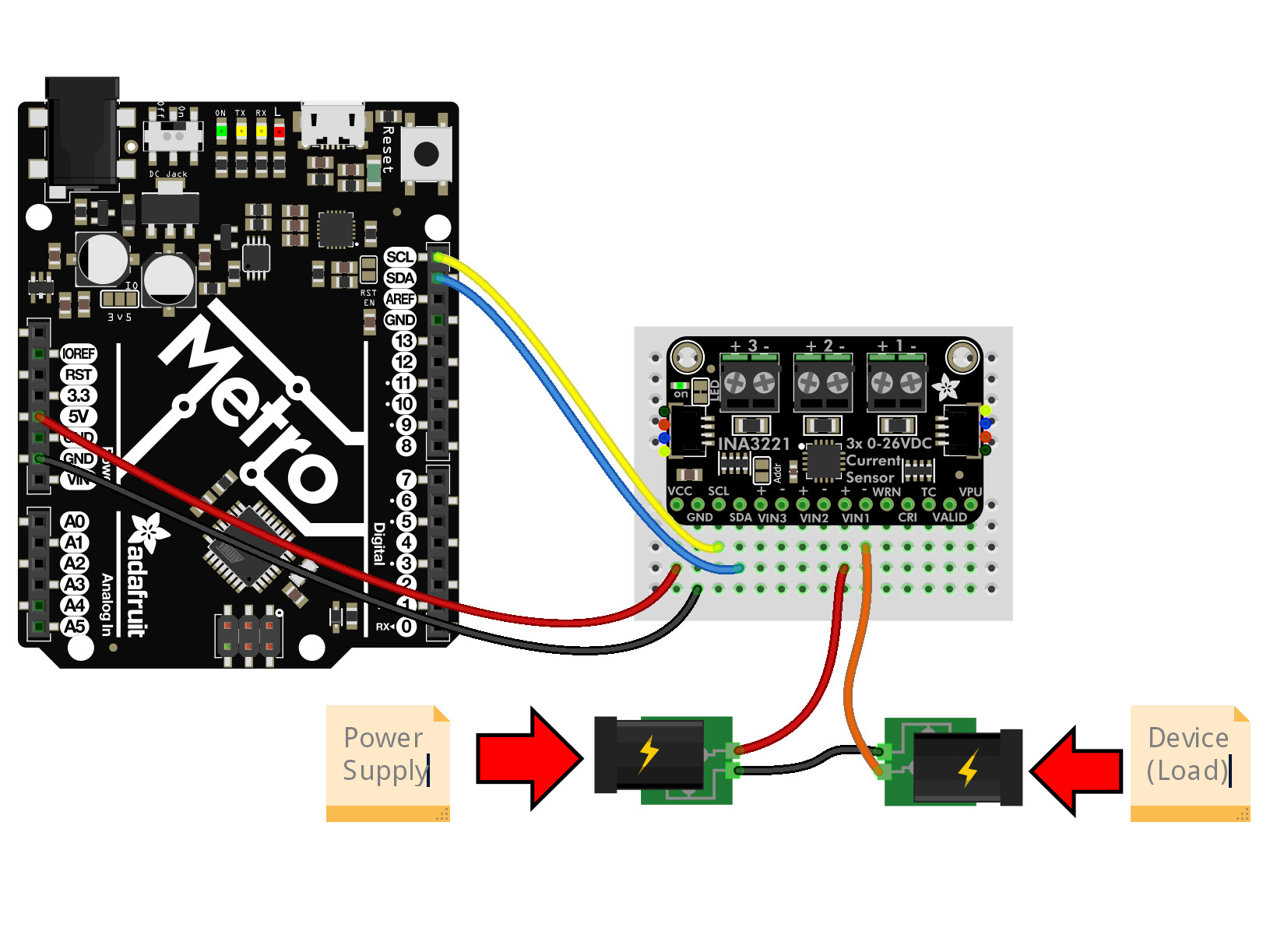

Wiring Diagram
Resources
Shipping List
- 1 x Adafruit INA3221 3 Channel Power Monitor
Adafruit INA3221 3 Channel Power Monitor – 3.2A
- Brand: Adafruit
- Product Code: AF6062
- Weight: 0.008kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | No Stock | |
| Stellenbosch | No Stock |
We ship free of charge between branches to complete your order.
-
R229.00 (Inc Tax: R263.35)
