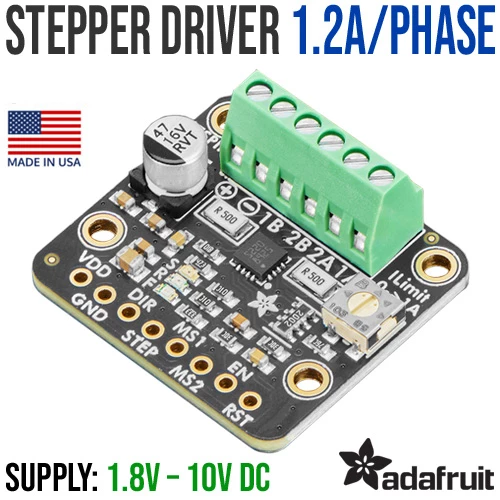

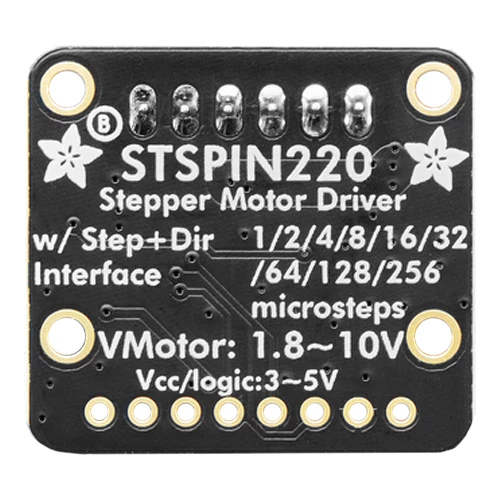

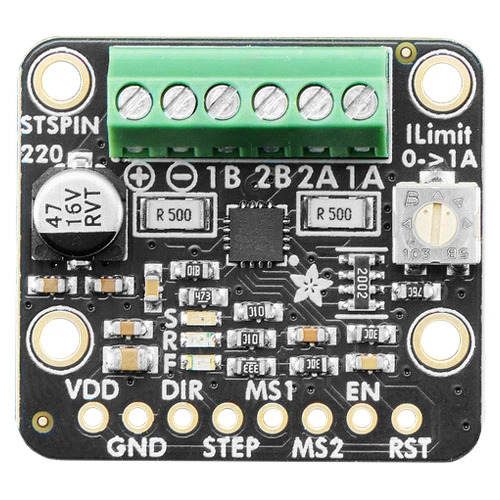

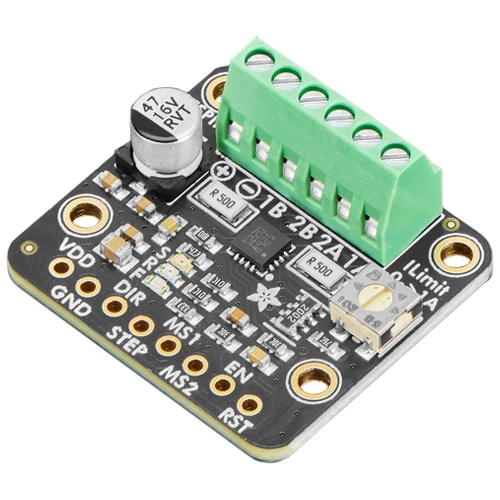

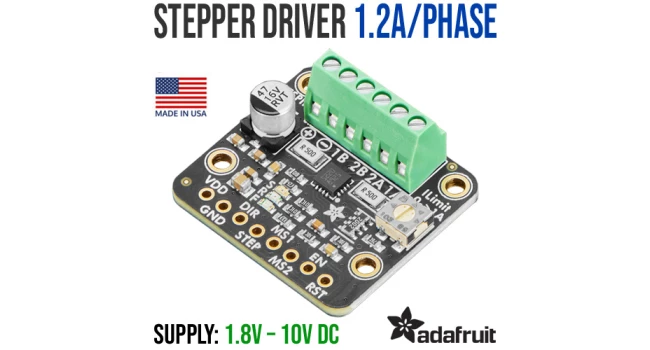

Adafruit STSPIN220 Stepper Motor Driver - 1.2A
The Adafruit STSPIN220 Stepper Motor Driver Breakout is a compact and easy-to-use solution for precise stepper motor control in applications such as CNC machines, 3D printers, and robotics. Built around the STSPIN220 driver chip, it delivers smooth, high-precision motion with built-in microstepping support, current limiting, and overcurrent protection, making it ideal for reliable motor control in space-constrained or low-voltage systems.
Designed for simplicity, this driver eliminates the need for complex PWM or timer configurations by using a straightforward STEP and DIR interface, allowing full control with just two GPIO pins. With configurable microstepping up to 1/256 steps, onboard current adjustment, and clear LED indicators for direction and stepping activity, it provides both flexibility and real-time feedback for prototyping and development.
Quick Spec
- Driver IC: STSPIN220 microstepping stepper driver
- Motor voltage: 1.8V – 10V
- Logic voltage: 3V – 5V (compatible with Arduino, ESP32, Raspberry Pi, etc.)
- Current limit: up to ~1.3A (adjustable via onboard potentiometer)
- Microstepping: 1, 1/2, 1/4, 1/8, 1/16 (default), up to 1/256 configurable
- Control interface: STEP and DIR (GPIO-based control)
- Protection: overcurrent protection built-in
- Indicators: LED for STEP and DIR signals
- Connections: screw terminals for motor and power wiring
- Operating features: reset and enable pins for low-power control
- Mounting: 4 mounting holes
- Capacitor: 47µF 16V onboard smoothing capacitor

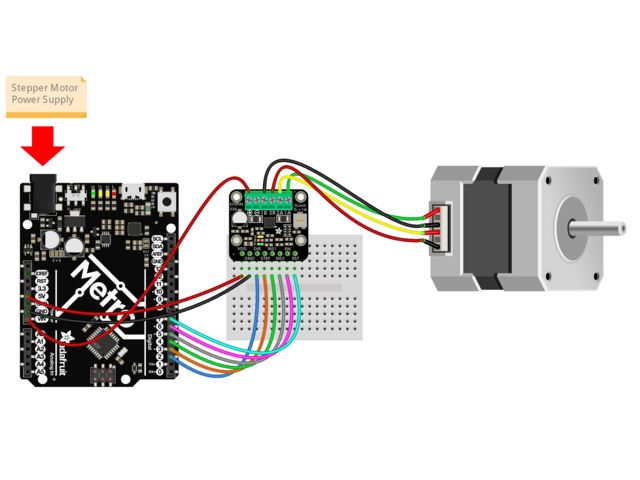

Wiring Diagram
Resources
Shipping List
- 1 x Adafruit STSPIN220 Stepper Motor Driver - 1.2A
- 1 x 8-Pin SIL Male Header
Adafruit STSPIN220 Stepper Motor Driver - 1.2A
- Brand: Adafruit
- Product Code: AF6353
- Weight: 0.007kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | No Stock | |
| Stellenbosch | No Stock |
We ship free of charge between branches to complete your order.
-
R139.00 (Inc Tax: R159.85)
