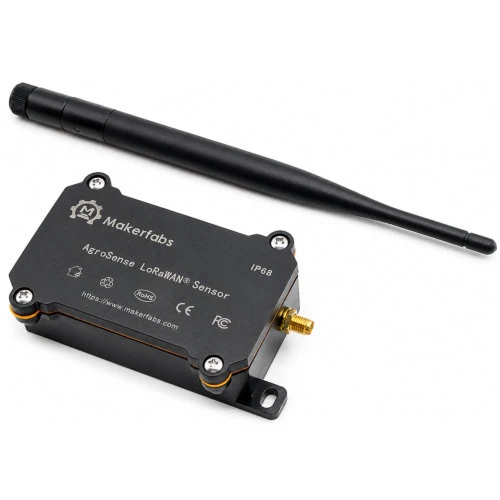

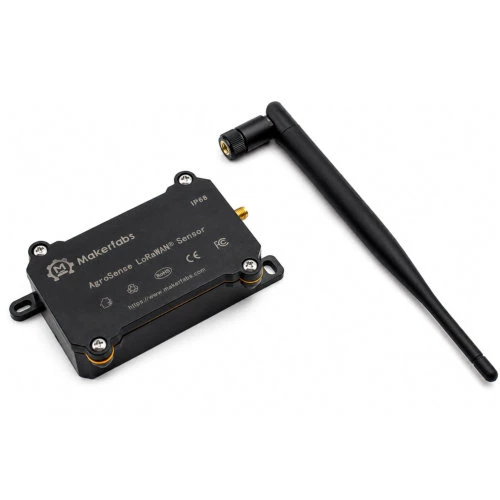

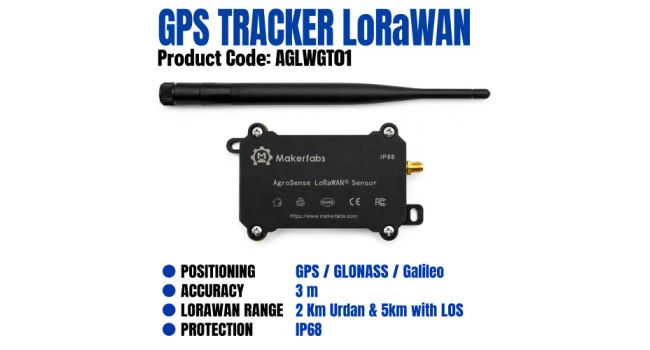

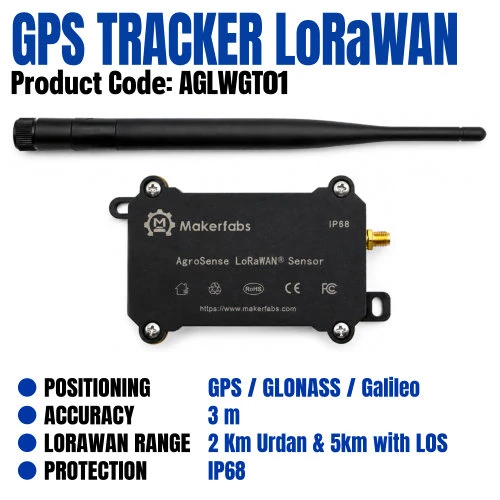

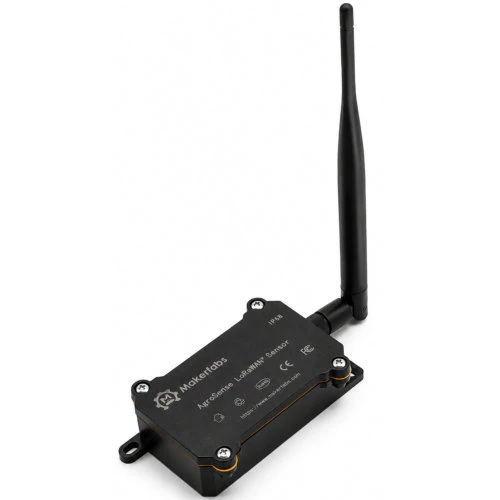

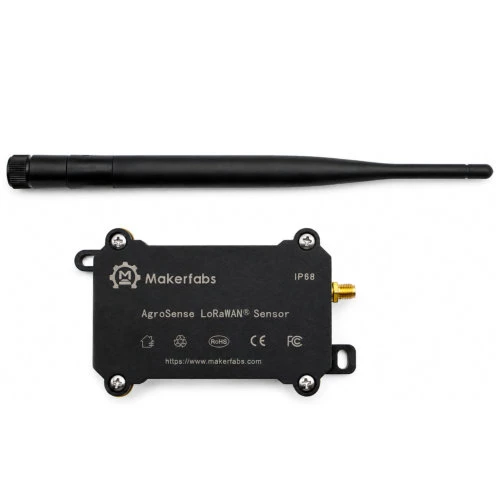

AgroSense GPS Tracker LoRaWAN
The AgroSense GPS Tracker LoRaWAN® PA1010D is a compact, battery-powered location tracker designed for outdoor and remote geolocation applications. Using the PA1010D GPS module, it delivers faster positioning, lower power consumption, and higher update frequency compared to older NEO-6M models.
It transmits GPS coordinates via LoRaWAN® V1.0.3, Class A (OTAA) to networks such as The Things Network or DataCake, and includes a vibration sensor (LIS3DHTR) for movement detection. Housed in a rugged IP68 enclosure, it operates in extreme temperatures and offers up to 20 months of runtime on a single 18650 battery, making it perfect for asset tracking, farm equipment monitoring, and remote management.
Quick Spec
- Model: AGLWGT01
- GNSS Support: GPS, GLONASS, GALILEO, QZSS, SBAS
- Positioning Accuracy:
- 3.0m (no assist, 50% CEP)
- 2.5m (DGPS/SBAS, 50% CEP)
- Velocity Accuracy: 0.1 m/s (no assist), 0.05–0.1 m/s (differential)
- Time Accuracy (1PPS): ±20 ns RMS
- Location Resolution:
- Longitude/Latitude: 0.0001
- Altitude: 1 meter
- Update Interval: 60 min default (adjustable: 5 min – 24 hrs)
- Motion Detection: Built-in LIS3DHTR accelerometer
- LoRaWAN Protocol: V1.0.3, OTAA, Class A
- Frequency Bands: EU868 / US915
- Max Transmit Power: 21 dBm
- Receiver Sensitivity: -137 dBm
- Power Supply: 1 x 18650 3.7V Li-ion battery
- Runtime: Up to 20 months per charge
- Operating Temp: -40°C ~ 85°C
- Enclosure: IP68-rated
- Dimensions: 131 × 62.7 × 27.5 mm
- Mounting: Wall-mounted
- Compatibility: TTN, DataCake, LoRaWAN® gateways
Product Video
Resources
Shipping List
- 1 x AgroSense GPS Tracker LoRaWAN
AgroSense GPS Tracker LoRaWAN
- Brand: Makerfabs
- Product Code: AGLWGT01
- Weight: 0.186kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | Limited Stock | CC028 |
| Stellenbosch | Limited Stock | Z0001 |
We ship free of charge between branches to complete your order.
-
R748.00 (Inc Tax: R860.20)
