• Description

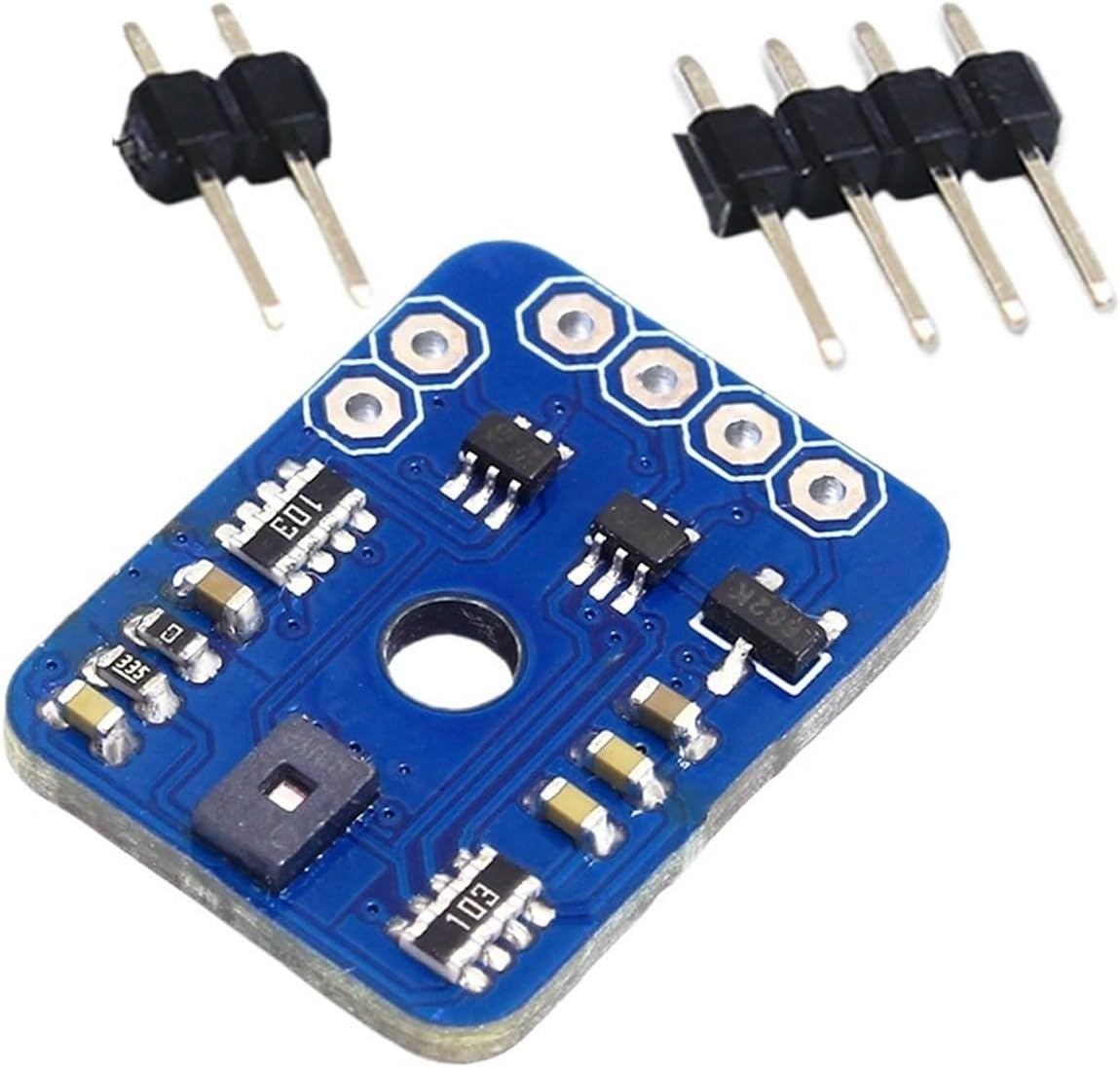

AS7331 UV Spectral Sensor – 3 Channel (UV-A, UV-B, UV-C)

The AS7331 is a high-precision, low-power 3-channel ultraviolet spectral sensor designed to accurately measure radiation intensity across the UVA (320–400nm), UVB (280–320nm), and UVC (200–280nm) ranges. Using UV-optimized photodiodes and integrated interference filter technology, it converts optical radiation into digital data via an I2C interface, supporting both continuous and triggered measurements. Separate UV channel detection with integrated daylight (VIS+NIR) blocking ensures reliable and stable readings without filter aging or long-term drift.

With 12 programmable gain steps and 15 adjustable conversion time settings, the AS7331 offers a wide dynamic range adaptable from low-light to high-radiation environments. External synchronization (SYN pin) allows precise timing control, while its extended operating temperature range makes it suitable for harsh environments. Ideal for UV disinfection systems, water and air quality analysis, phototherapy, skin diagnostics, UV curing, and horticulture applications.

Quick Spec

• Sensor Type: 3-Channel UV Spectral Sensor (UVA/UVB/UVC)
• Wavelength Range: 200 – 400nm
• Interface: I2C (Fast Mode)
• Supply Voltage: 3.3V – 5V
• Gain Steps: 12 (factor of 2 per step)
• Conversion Time Steps: 15 (factor of 2 per step)
• Operating Temperature: -40°C to +105°C
• External Sync Input: Yes (SYN)
• RDY Output: Push-pull or open-drain (configurable)
• Module Dimensions: 15 × 19.7mm
• Channels: UV-A (320–400nm), UV-B (280–320nm), UV-C (200–280nm)

Resources

• AS7331 Datasheet

Shipping List

• 1 x AS7331 UV Spectral Sensor – 3 Channel (UV-A, UV-B, UV-C)
• 1 x 4-Pin SIL Male Header
• 1 x 2-Pin SIL Male Header

AS7331 UV Spectral Sensor – 3 Channel (UV-A, UV-B, UV-C)

• Brand: Generic
• Product Code: AS7331-MOD
• Weight: 0.002kg
• Product Status : Active

Stock

Warehouse	Stock Status	Location
Centurion	In Stock	F117
Stellenbosch	Limited Stock	S40
Bulk Location	No Stock

We ship free of charge between branches to complete your order.

• R579.00 (Inc Tax: R665.85)
