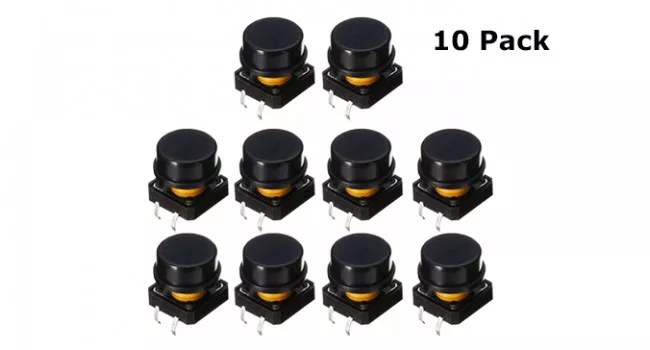

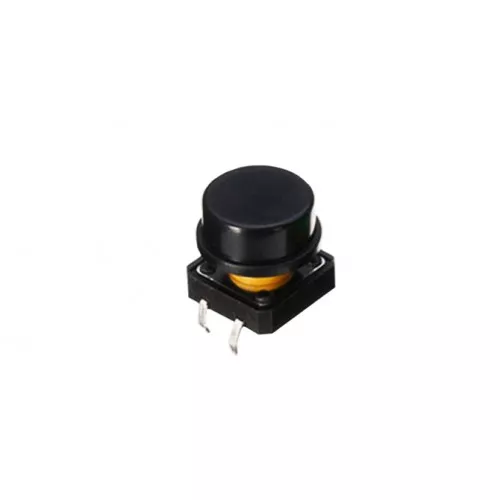

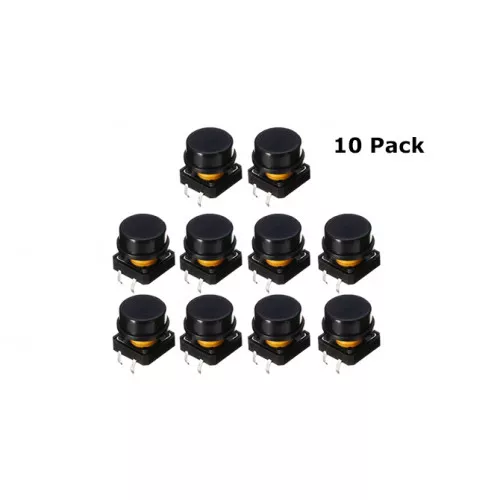

Tactile Switch + Black Cap (10 Pack)

Little clicky switches are standard input "buttons" on electronic projects. These work best in a PCB but can be used on a solderless breadboard as shown in this tutorial. The pins are normally open (disconnected) and when the button is pressed they are momentarily closed. These buttons are bigger than the 6mm ones we carry, and come in a pack of 10. The round plastic button tops affix easily to the tactile switch body.



tactile switch dimension and pcb pattern

Quick Spec

  • Action Type: Momentary Tactile Switch
  • Dimensions: 12 x 12 x 11mm
  • Button Diameter: 11mm
  • Pin Pitch: 12 x 5mm (L*W)
  • Pin Length: 4mm
  • Material: Plastic, Metal, Electric Parts
  • Weight: 24g
  • Leg Spacing: 5.08mm (2 x 2.54)

Resources

Shipping List

  • 10 x Tactile Switch + Black Cap

Tactile Switch + Black Cap (10 Pack)

  • Brand: Generic
  • Product Code: B3F-ROUND-BLK
  • Weight: 0.013kg
  • Product Status : Active
  • Stock

    Warehouse Stock Status Location
    Centurion No Stock
    Stellenbosch No Stock
    Bulk Location No Stock

    We ship free of charge between branches to complete your order.

  • R20.00 (Inc Tax: R23.00)
