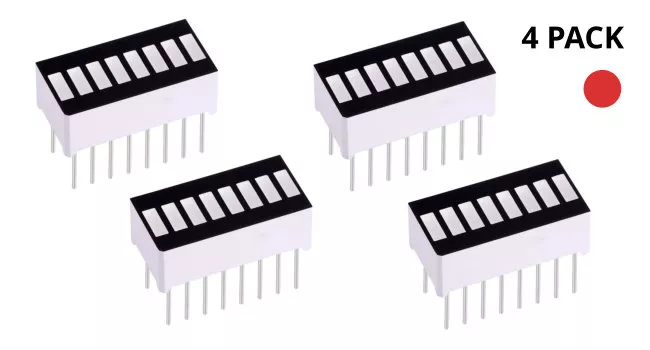

Bar Graph LED, Red, 8 Segment (4 Pack)

These 8 segment bar graph LEDs have many uses. With a compact footprint, simple hookup, they are easy for prototyping or finished products. Essentially, they are 8 individual red LEDs housed together, each with an individual anode and cathode connection.

Quick Spec

  • Forward Voltage: 1.99V
  • Forward Current: 20mA (Max 25mA)
  • Segment: 8
  • Colour: Red
  • Net Weight: 9g

Dimensions

BAR8-RED-008
BAR8-RED-DIM2

BAR8-RED-PIN

Shipping List

  • 4 x Bar Graph LED, Red, 8 Segment - RED

Bar Graph LED, Red, 8 Seg (4 Pack)

  • Brand: Generic
  • Product Code: BAR8-RED
  • Weight: 0.009kg
  • Product Status : Active
  • Stock

    Warehouse Stock Status Location
    Centurion Limited Stock X095
    Stellenbosch Limited Stock 766

    We ship free of charge between branches to complete your order.

  • R38.00 (Inc Tax: R43.70)
