BSS138 50V 300mA N-Channel MOSFET (25 Pack)
The BSS138 is a compact 50V N-channel MOSFET delivering 300mA switching, low gate charge and 2.5V gate operation, ideal for load switching, level shifting and embedded control applications in electronics.
Quick Spec
- Transistor Type: N-channel MOSFET
- Drain-Source Voltage: 50V
- Continuous Drain Current: 300mA
- Gate-Source Voltage: ±20V maximum
- Gate Threshold Voltage: 0.7V to 1.5V
- On-Resistance: Maximum 2.5Ω at 10V
- Low-Voltage On-Resistance: Maximum 3.5Ω at 2.5V
- Power Dissipation: 300mW
- Package: SOT-23, 3-pin SMD
- Operating Temperature: Up to 150°C junction temperature

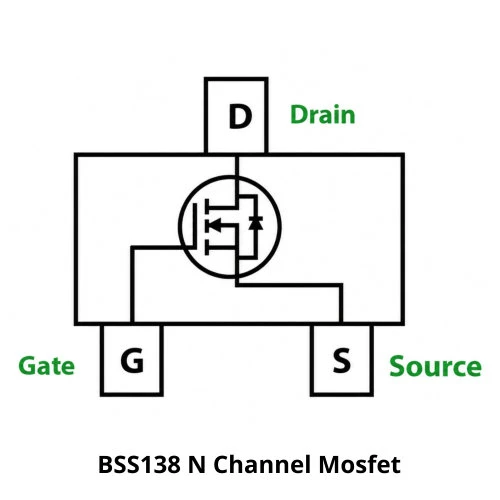

BSS138 Pinout

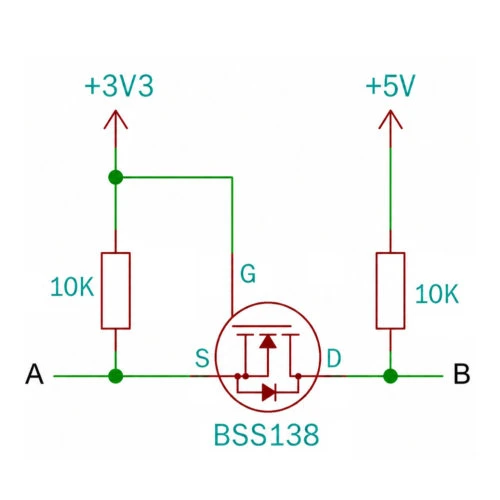

Circuit Example
Resources
Shipping List
- 25 × BSS138 50V 300mA N-Channel MOSFET – SOT-23 SMD
BSS138 50V 300mA N-Channel MOSFET (25 Pack)
- Brand: Generic
- Product Code: BSS138
- Weight: 0.0005kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | In Stock | CC231 |
| Stellenbosch | In Stock | A0149 |
We ship free of charge between branches to complete your order.
-
R10.00 (Inc Tax: R11.50)
