Buzzer 5V Low Profile PCB (4 Pack)

  • Brand: Generic
  • Product Code: BUZ-50V-PCB
  • Stock

    Warehouse Stock Status Location
    Centurion In Stock Y061+Y001+CX-TOP
    Stellenbosch In Stock 618 + Z5110
  • R16.00 (price excl. VAT)

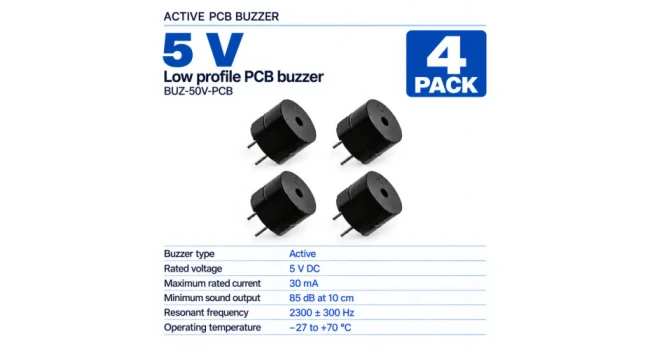

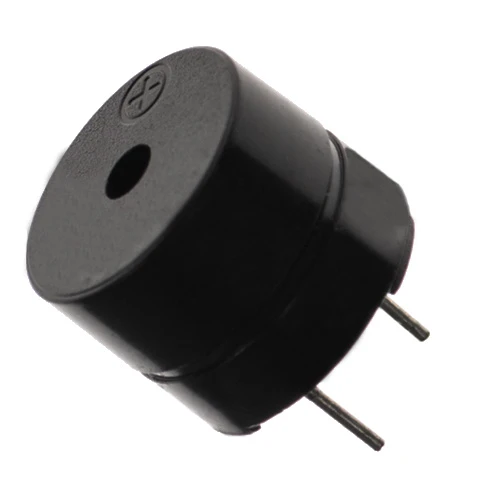

Buzzer 5V Low Profile PCB (4 Pack)

This is an active buzzer which means that you only need to give it power for it to beep.

Quick Spec

  • Rated Voltage: 5V
  • Rated Current (MAX): 30 mA
  • Min Sound Output at 10cm: 85 dB
  • Resonant Frequency: 2300±300 Hz
  • Operating Temperature: -27 to +70 °C

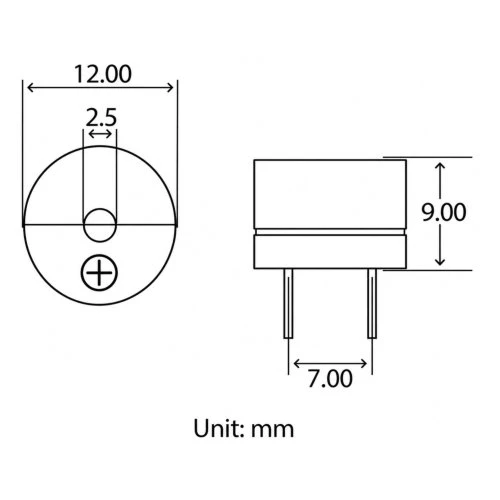

Dimensions

BUZ_50_V_PCB

Shipping List

  • 4 x Buzzer 5V Low Profile PCB
