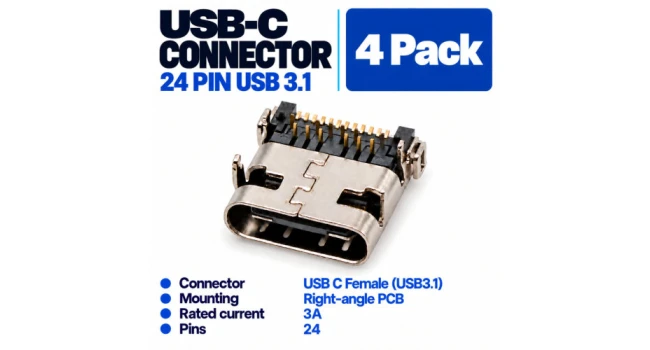

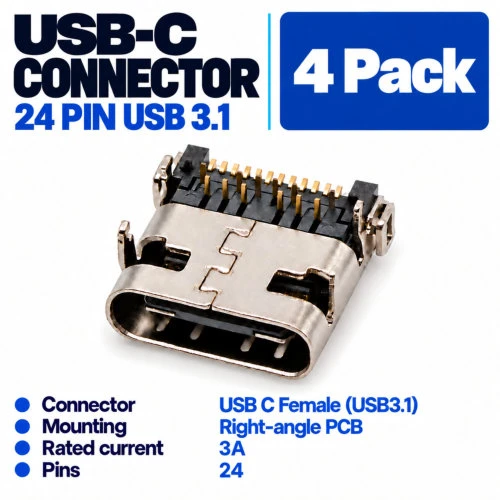

USB C 3.1 Connector 24 Pin (4 Pack)

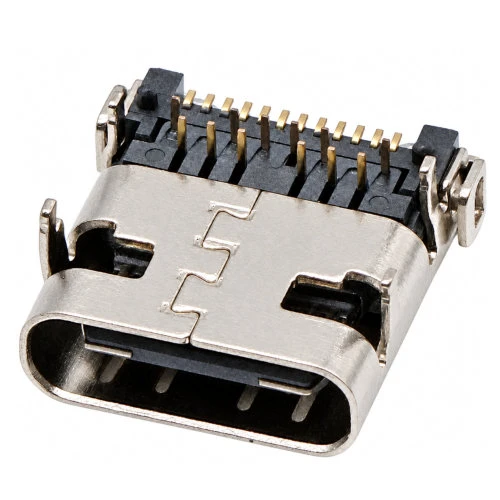

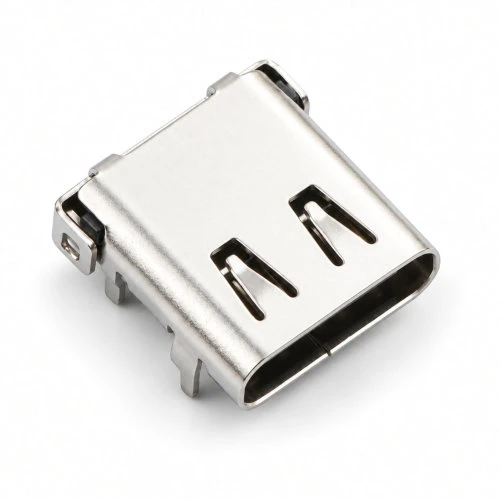

The C456013 is a compact USB-C female connector with 24 contacts and USB 3.1 compatibility. Its right angle surface mounting design suits custom circuit boards and replacement projects. Measuring 9.85 mm long, it provides a reversible connection for power and data in appropriately designed electronic devices, prototypes and embedded systems.
Quick Spec
- Manufacturer: SHOU HAN

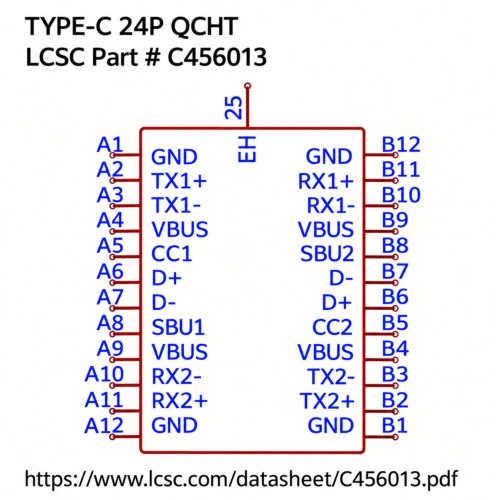

- Model: TYPE-C 24P QCHT
- Standard: USB 3.1
- Contacts: 24
- Current rating: 3A
- Mounting: Surface mount, right angle
- Length: 9.85mm
- Operating temperature: -30°C to +80°C

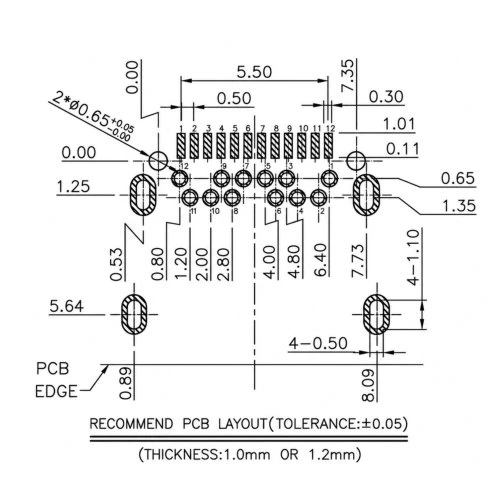

PCB Layout
Resources
Shipping List
- 4 x USB C 3.1 Connector 24 Pin
USB C 3.1 Connector 24 Pin (4 Pack)
- Product Code: C456013
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | No Stock | |
| Stellenbosch | No Stock |
We ship free of charge between branches to complete your order.
-
R22.00 (Inc Tax: R25.30)
Tags: USB-C, 24-pin, female socket, PCB connector, SHOU HAN
