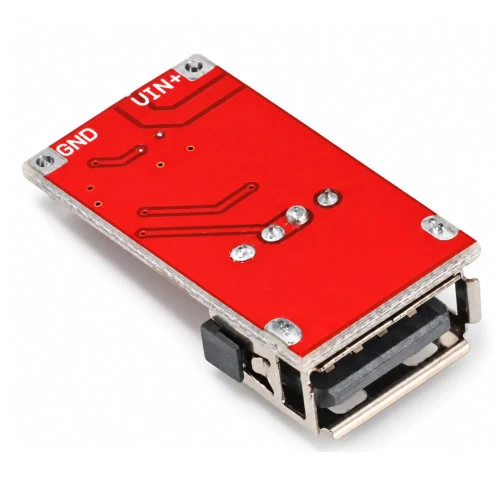

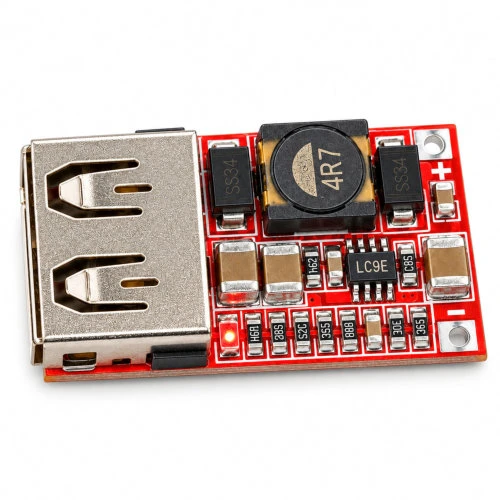

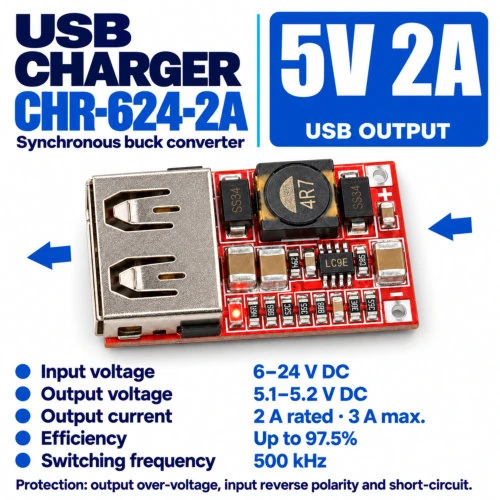

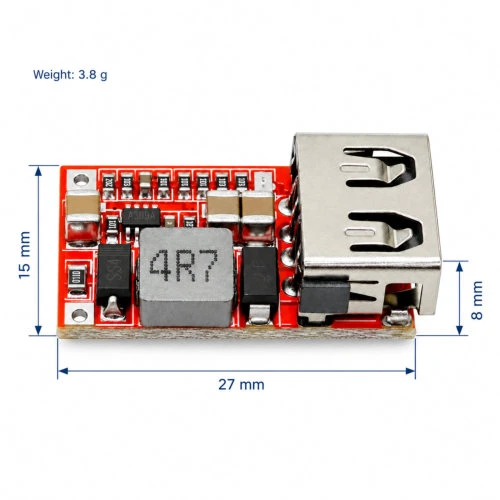

Step Down Regulator (Buck), Input 6-24V, Output USB 5V 2A, USB A
USB buck converter with up to 97.5% efficiency and 0.85 mA quiescent current. Features overvoltage and reverse-polarity protection, a 1.5 A fuse, 300 W TVS protection, USB charging identification for compatible Apple and Android devices, a copper inductor, and a red output indicator.
Quick Spec
- Type: Non-isolated synchronous buck converter
- Input Voltage: 6–24 V DC
- Output Voltage: 5.1–5.2 V
- Maximum Current: 3 A
- Efficiency: Up to 97.5%
- Switching Frequency: 500 kHz
- Output Ripple: Approximately 10 mV
- Operating Temperature: −40°C to +85°C
- Protection: Overvoltage, short-circuit, reverse-polarity
- Connections: Soldered input; USB output
- Shipping List
- 1 x USB Charger 6-24V 2A

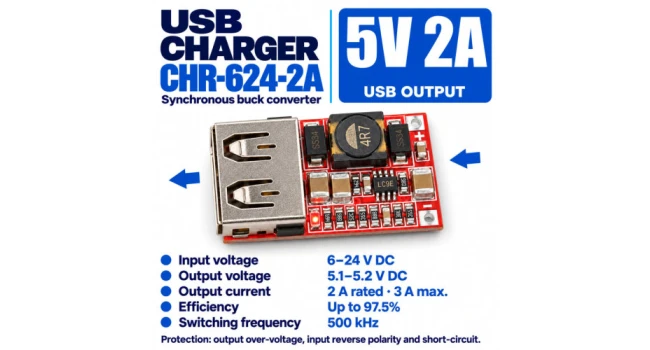

Step Down Buck Voltage Regulator Input 6-24V, Output 5V 2A USB A
- Brand: Generic
- Product Code: CHR-624-2A
- Weight: 0.005kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | In Stock | D86-02 |
| Stellenbosch | In Stock | B0140 |
We ship free of charge between branches to complete your order.
-
R48.00 (Inc Tax: R55.20)
