IOIO Board for Android
The IOIO (pronounced "yo-yo") is a board specially designed to work with your Android 1.5 and later device. The board provides robust connectivity to an Android device via a USB or Bluetooth connection and is fully controllable from within an Android application using a simple and intuitive Java API - no embedded programming or external programmer will ever be needed! The IOIO board contains a single MCU that acts as a USB host and interprets commands from an Android app.

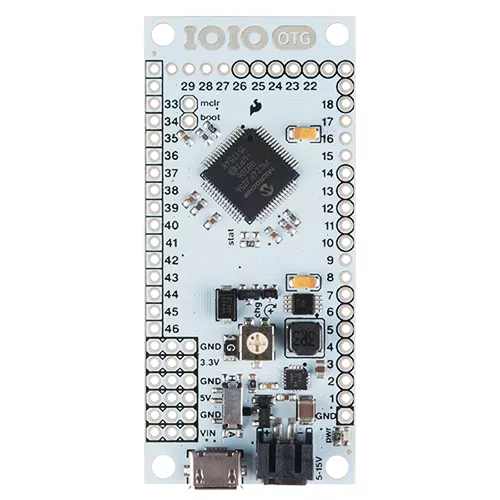

Quick Spec
- GND pins (9 pins): Ground connection.
- VIN pins (3 pins): Used for power supply to the board. Max (5V-15V)
- 5V pins (3 pins): Normally used as 5V output
- Can be used as 5V input in case VIN is not connected.
- 3.3V pins (3 pins): 3.3V output.
- I/O pins (48 pins, numbered 1-48): General purpose I/O pins.
- power LED: Lights when the IOIO is getting power.
- stat LED: Lights briefly during power-up
- mclr pin: Not normally used.
- Charge current trimmer (CHG):
- Turning in the (+) direction increases charge current
Resources
- IOIO Wiki Home
- Schematic
- Beginner's Software Installation Guide
- Firmware Downloads
- IOIO Manager Application
Example

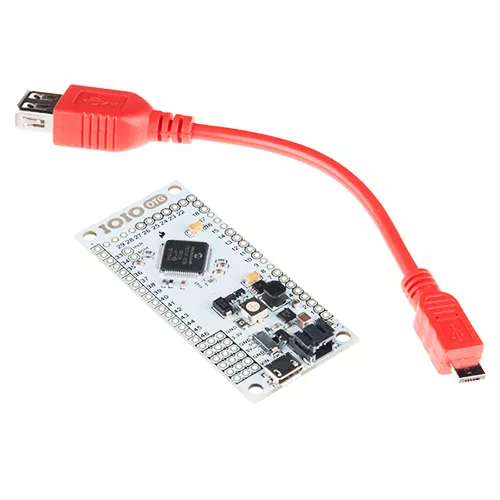

Shipping List
- 1 x IOIO Board
- 1 x USB Cable
IOIO Board for Android
- Brand: Sparkfun
- Product Code: DEV-13613
- Weight: 0.023kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | In Stock | HH025 |
| Stellenbosch | No Stock | Z6079 |
We ship free of charge between branches to complete your order.
-
R882.00 (Inc Tax: R1,014.30)
Tags: ioio, android, arduino board, for, sparkfun, pololu, yoyo, yo-yo, yo yo
