DF Robot DC Motor Driver HAT for Raspberry Pi - 2 Channel

The DF Robot DC Motor Driver HAT for Raspberry Pi is a compact and efficient motor control solution designed to drive up to two DC motors, with or without encoders. Communicating with the Raspberry Pi via the I2C interface, this HAT simplifies motor control while reducing GPIO usage, making it ideal for robotics, automation, and motion-control projects.



At its core, the board uses an STM32 microcontroller to process commands from the Raspberry Pi and generate precise motor drive signals. A high-performance TB6612FNG motor driver chip provides reliable current handling, supporting up to 1.2A continuous current per channel and peak currents of up to 2A. With support for a wide 7–12V motor power input and onboard status indicators, this motor driver HAT offers a stable, easy-to-integrate solution for Raspberry Pi–based motion systems.

Quick Spec

• Main controller: STM32
• Motor driver IC: TB6612FNG
• Operating voltage (motor supply): 7–12 V
• Logic voltage: 5 V
• Communication interface: I2C
• Default I2C address: 0x10
• Motor channels: 2
• Supported modes: 2× DC motors or 2× DC motors with encoders
• Continuous drive current: up to 1.2 A per channel
• Peak current: up to 2 A
• Indicators: Power indicator LED, communication status LED
• Dimensions: 65 × 30 mm

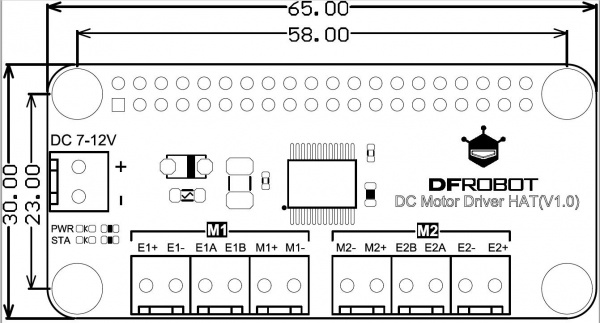

Dimensions

Board Layout

Number	Name	Description
1	+	External Power Positive (7~12V)
2	-	External Power Negative
3	E1+	Encoder E1 Positive
4	E1-	Encoder E1 Negative
5	E1A	Encoder E1 A Phase Output
6	E1B	Encoder E1 B Phase Output
7	M1+	Motor M1 Positive
8	M1-	Motor M1 Negative
9	M2-	Motor M2 Negative
10	M2+	Motor M2 Positive
11	E2B	Encoder E2 B Phase Output
12	E2A	Encoder E2 A Phase Output
13	E2-	Encoder E2 Negative
14	E2+	Encoder E2 Positive

Resources

• Product Page
• Product Wiki
• Schematic

Shipping List

• 1 x DF Robot DC Motor Driver HAT for Raspberry Pi - 2 Channel

DF Robot DC Motor Driver HAT for Raspberry Pi - 2 Channel

• Brand: DF Robot
• Product Code: DFR0592
• Weight: 0.03kg
• Product Status : Active

Stock

Warehouse	Stock Status	Location
Centurion	Limited Stock	FF054
Stellenbosch	No Stock
Bulk Location	No Stock

We ship free of charge between branches to complete your order.

• R325.00 (Inc Tax: R373.75)
