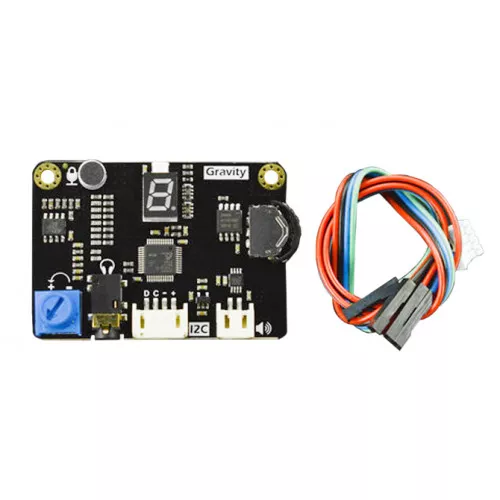

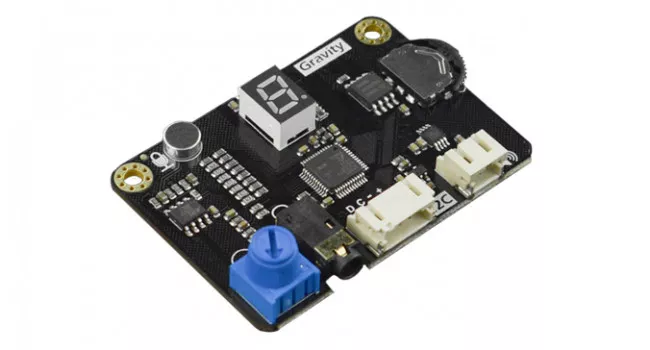

DF Robot I2C Voice Recorder Module
The Gravity: I2C Voice Recorder Module EDU is DFRobot all-in-one voice interaction module, which integrates recording and playback functions into one.
It can record with one button, and also supports Gravity: I2C interface for recording and playback by microcontroller. The unit supports number synthesis reading function, simple programming, and can directly broadcast temperature, humidity, voltage, time and other data, support headphones or speaker output, and has built-in amplifier making it plug and play. The unit is compatible with Arduino AVR, micro:bit, mPython, and Firebeetle-ESP32
Product Video
Quick Spec
- Operating Voltage: 3.3~5V
- Communication Interface: Gravity I2C
- I2C Address: 0x30~0x39 (Adjustable)
- Recording Function: Can store up to 10 segments of 100s audio
- Speech Synthesis: -999999999.999999999 to 999999999.999999999 (Number Synthesis Reading Function)
- Audio Output 1: 3.5mm Headphone Port
- Audio Output 2: PH2.0 Speaker Port
- Dimension: 57 x 40mm
- Net Weight: 24g
Board Layout
Resources
Shipping List
- 1 x DF Robot I2C Voice Recorder Module
DF Robot I2C Voice Recorder Module
- Brand: DF Robot
- Product Code: DFR0699
- Weight: 0.024kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | Limited Stock | FF332 |
| Stellenbosch | No Stock |
We ship free of charge between branches to complete your order.
-
R168.00 (Inc Tax: R193.20)
