Solenoid Air Valve 3 way 2 Position - 6V
For those who are interested in a pneumatic system, hydraulic system, inflation equipment, or air compressing, this is a really practical valve for you. It can be used to change the direction of the air outlet, also can be used as a valve switch. Like a relay, it has a common interface (COM), a normally open interface (NO), and a normally closed interface(NC). You can determine which interface to be connected to the common interface by powering on and off the valve.
Quick Spec
- Operating Voltage: 6V
- Rated Current: 100±10% mA
- DC Impedance: 60±10%Ω
- Power: 0.6W
- Air Nozzle Diameter: Ø3.0mm
- Maximum Pressure: 40KPa (300mmHg)
- Medium: Gas
- Lead Length: ±130mm
- Dimensions: 31.1 x 14 x 18mm
- Net Weight: 17g

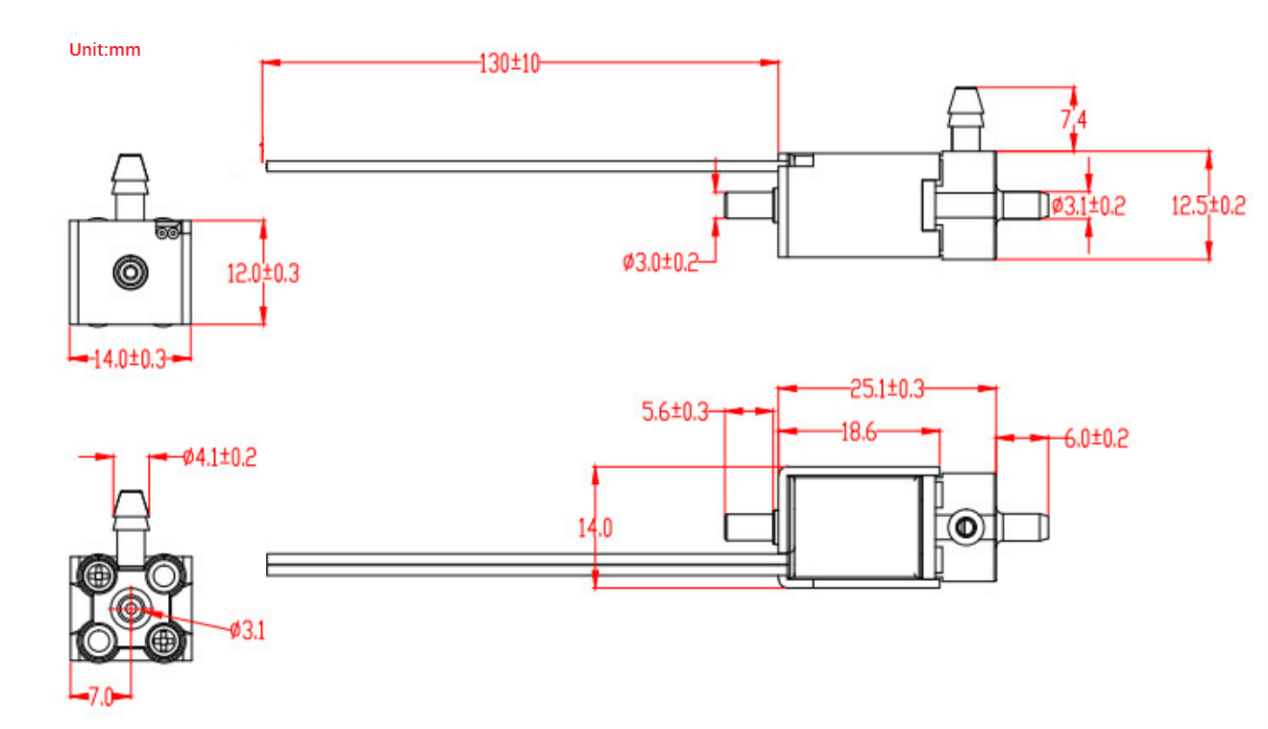

Dimensions
Resources
Shipping List
- 1 x Solenoid Air Valve 3 way 2 Position - 6V
Solenoid Air Valve 3 way 2 Position - 6V
- Brand: DF Robot
- Product Code: DFR0866
- Weight: 0.017kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | In Stock | CC191 |
| Stellenbosch | In Stock | Z3041 |
We ship free of charge between branches to complete your order.
-
R78.00 (Inc Tax: R89.70)
