• Description

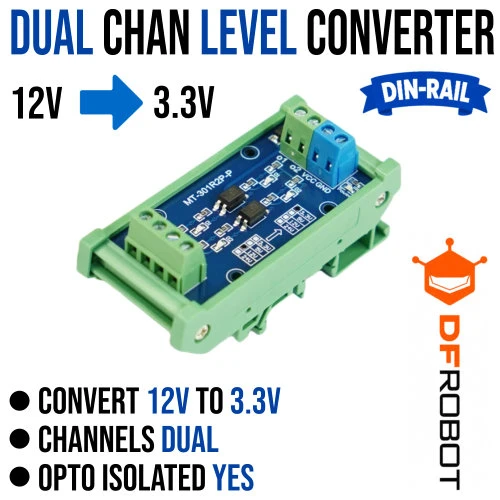

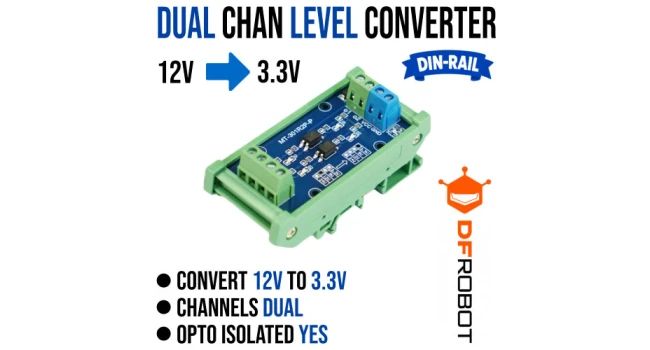

DIN Rail Opto Isolated 12V to 3.3V Logic Level Converter - 2 Channel

This 12V to 3.3V level converter module with 2-channel Optocoupler isolation features common anode / common cathode / differential signal inputs. The level shifter translates signal level from 12V to 3.3V and offers PNP output. It can be used for signal isolation, PLC signal level conversion, NPN to PNP signal conversion, polarity conversion, signal level voltage conversion and so on.

Note: DC power supply positive is equal to signal output voltage. For example: 12V to 3.3V module, then VCC=3.3V.

Quick Spec

• Input Channel: 2-channel Optocoupler Isolation
• Output Signal: PNP Output
• Sensor Input Voltage: 12V
• Module Supply Voltage: 3.3V
• Input Signal Level: 12V
• Output Signal Level: 3.3V
• Output Current: no more than 50mA for each channel
• Indicator: SMD LED
• Size of Bare Board: 38 x 72 x 19mm
• Size of Converter with Shell: 40 x 87 x 39mm
• Size of Screw Hole: 3mm
• Installation Specification: With Shell (Fit on standard rails)

Wiring Diagram

Resources

• Product Page
• Product Wiki

Shipping List

• 1 x DIN  Opto Isolated Rail 12V to 3.3V Logic Level Converter - 2 Channel

DIN Opto Isolated Rail 12V to 3.3V Logic Level Converter - 2 Channel

• Brand: DF Robot
• Product Code: DFR0911
• Weight: 0.06kg
• Product Status : Active
