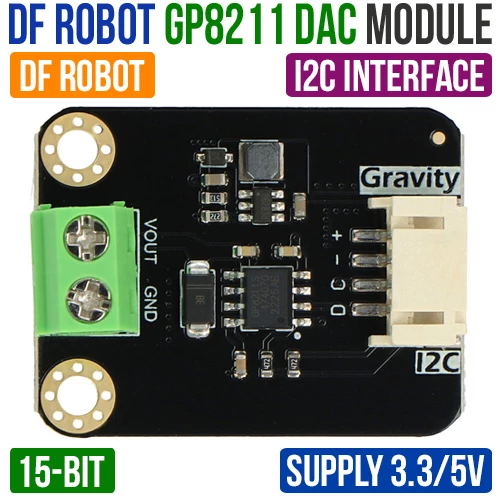

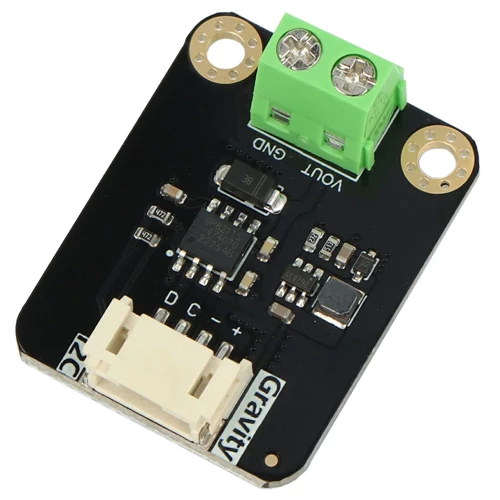

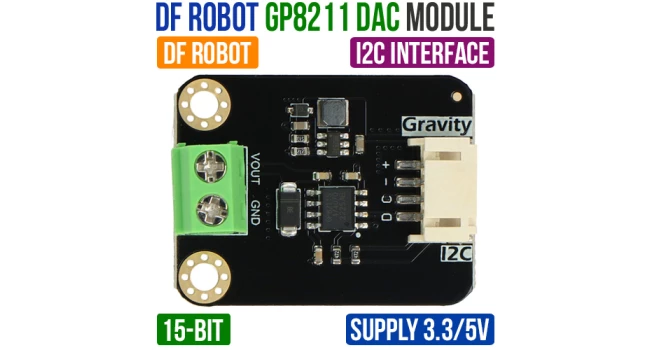

DF Robot GP8211 I2C 15-bit DAC Module (0-5V/10V)
The DF Robot GP8211 I2C 15-bit DAC Module is a high-precision, single-channel DAC with I2C communication. It offers a resolution of 15-bit and an accuracy of 0.01%, delivering analog voltage outputs of 0-5V or 0-10V. This module is ideal for automation control applications, such as lighting adjustment, frequency converters, valve regulation, and pump control. Its high precision makes it perfect for scenarios requiring fine control, like precise speed or angle adjustments. Compatible with Arduino, it can drive various 0-5V or 0-10V controlled devices.
The DAC series includes products that generate voltage or current output signals through I2C or PWM, with options for 8-bit, 12-bit, and 15-bit resolutions. These modules support single or dual channels and can be cascaded for multi-channel output.
Quick Spec
- Operating voltage: 3.3V to 5V
- Communication Method: I2C
- Chip Type: GP8211S
- Resolution: 15-bit
- Output Voltage: 0-5V or 0-10V
- Number of channels: 1 channel
- Value Range: 0 - 32767 corresponding to 0-5V or 0-10V
- Output voltage: 0.01%
- Output voltage linearity error: 0.01%
- Dimensions: 27 x 35mm

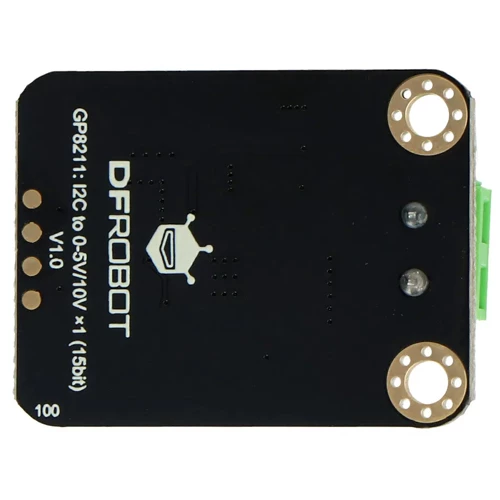

Board Layout
Wiring Diagram
Resources
Shipping List
- 1 x DF Robot GP8211 I2C 15-bit DAC Module (0-5V/10V)
- 1 x Gravity 4-Pin Interface Cable
DF Robot GP8211 I2C 15-bit DAC Module (0-5V/10V)
- Brand: DF Robot
- Product Code: DFR1071
- Weight: 0.016kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | In Stock | CC234 |
| Stellenbosch | In Stock | L30 |
We ship free of charge between branches to complete your order.
-
R216.00 (Inc Tax: R248.40)
