DF Robot Analog/Linear Hall Affect Sensor

The DF Robot Gravity Analog/Linear Hall Effect Sensor is a high-precision tool for detecting magnetic fields, utilizing advanced Hall effect technology to convert magnetic field strength into an analog voltage output. This sensor responds to both magnetic poles, increasing voltage output for the south pole and decreasing it for the north pole, allowing for precise bipolar detection. With features like low-noise output, a stable current source, and an onboard LED indicator for easy monitoring, this sensor is ideal for applications requiring accurate magnetic field detection, such as current sensing, motor control, and scientific research.

Quick Spec

  • Operating Voltage: 3.3~5V
  • Power Supply Current: 4.2-8 mA
  • Magnetic Field Range: ±1200 GS
  • Onboard Indicator LED
  • Detection Distance: <1cm (specific detection distance depends on the intensity and direction of the magnetic field)
  • Data Type: Analog
  • Interface Type: PH2.0-3P
  • Magnetic Pole Range:
    • micro:bit and Arduino (S Pole): 520-1023
    • micro:bit and Arduino (N Pole): 0-500
    • UNIHIKER (S Pole): 2068-4095
    • UNIHIKER (N Pole): 0-2028
  • Dimensions: 27 x 32mm

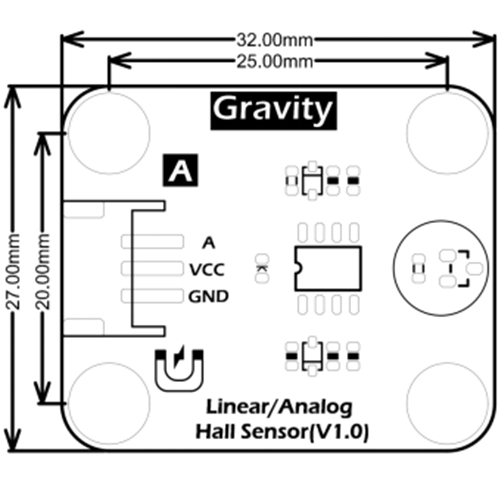

Dimensions

DFR1132-003

Resources

Shipping List

  • 1 x DF Robot Analog/Linear Hall Affect Sensor
  • 1 x Gravity Interface Cable


DF Robot Analog/Linear Hall Affect Sensor

  • Brand: DF Robot
  • Product Code: DFR1132
  • Weight: 0.012kg
  • Product Status : Active
  • Stock

    Warehouse Stock Status Location
    Centurion No Stock
    Stellenbosch No Stock
    Bulk Location No Stock

    We ship free of charge between branches to complete your order.

  • R58.00 (Inc Tax: R66.70)
