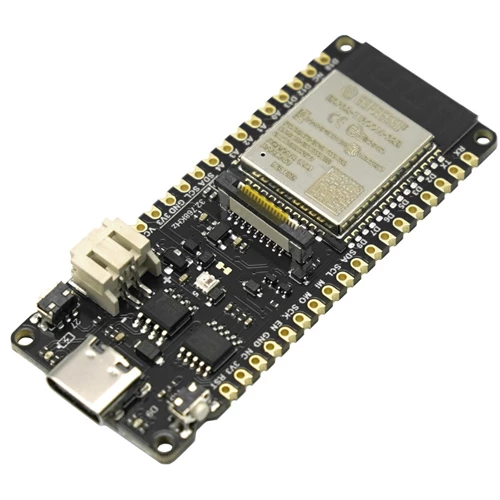

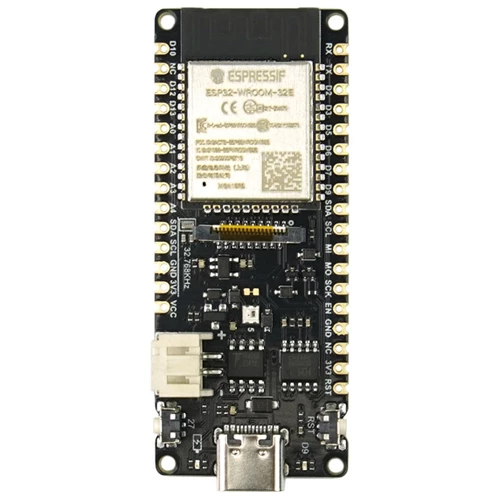

FireBeetle 2 ESP32-E (N16R2) IoT Microcontroller

The FireBeetle 2 ESP32-E (N16R2) IoT development board is equipped with 16M Flash, 2M PSRAM, and a 32-bit dual-core processor clocked at 240MHz. Built on Espressif's ESP32-WROOM-32E-N16R2 module, it supports dual-mode Wi-Fi and Bluetooth communication, making it ideal for IoT applications. The board features multiple peripheral interfaces, including 17 digital pins, 11 analog pins, UART, SPI, I2C, I2S, and DAC interfaces, catering to various hardware needs.

With support for dual power supply modes (USB and 3.7V lithium battery) and automatic switching, it ensures power efficiency. It also supports programming via Arduino IDE, ESP-IDF, and Micro-Python, offering flexibility for developers. Measuring just 25.4mm x 60mm, the compact design is suitable for embedded projects. The onboard PCB antenna offers space-saving benefits, while an external antenna (with the ESP32-WROOM-32UE variant) can provide greater signal range.

This low-power development board is perfect for IoT projects requiring efficient performance and compact design.

DFR1139-000

Quick Spec

Power Parameters

  • USB-C Interface: 5V DC
  • JST-PH2.0 Interface: 3.7V Li-ion
  • VCC Pin: 5V DC

MCU Parameters

  • Processor: Tensilica LX6 dual-core processor (one core for high-speed connectivity, one core for independent application development)
  • Clock Frequency: 240MHz
  • SRAM: 520KB
  • ROM: 448KB
  • Flash: 16MB
  • PSRAM: 2MB
  • On-chip Clock: 40MHz crystal oscillator, 32.768KHz crystal oscillator

Wireless Parameters

  • Wi-Fi Standard: FCC/CE/TELEC/KCC
  • Wi-Fi Protocol: 802.11 b/g/n/d/e/i/k/r (802.11n, up to 150 Mbps), A-MPDU and A-MSDU aggregation, supports 0.4us protection interval
  • Wi-Fi Frequency Range: 2.4~2.5 GHz
  • Bluetooth Protocol: Compliant with Bluetooth V4.2 BR/EDR and BLE standards
  • Bluetooth Audio: CVSD and SBC audio
  • Bluetooth Frequency Range: 2.4~2.5GHz

Peripheral Parameters

  • Digital Pins x 17: IO0, IO1, IO2, IO3, IO4, IO12, IO13, IO14, IO15, IO17, IO18, IO19, IO21, IO22, IO23, IO25, IO26
  • Analog Pins x 11: IO0, IO2, IO4, IO12, IO13, IO14, IO15, IO25, IO26, I34, I35
  • UART Interfaces: x3
  • SPI Interface: x1
  • I2C Interface: x1
  • I2S Interface: x1
  • DAC Interface: x2
  • Touch Interfaces: x7
  • LED PWM Channels: x16
  • RGB_LED: WS2812
  • Display Interface: GDI

Other Parameters

  • Interface Compatibility: FireBeetle V2 series compatible
  • Dimensions: 25.4 x 60mm
  • Net Weight: 24g

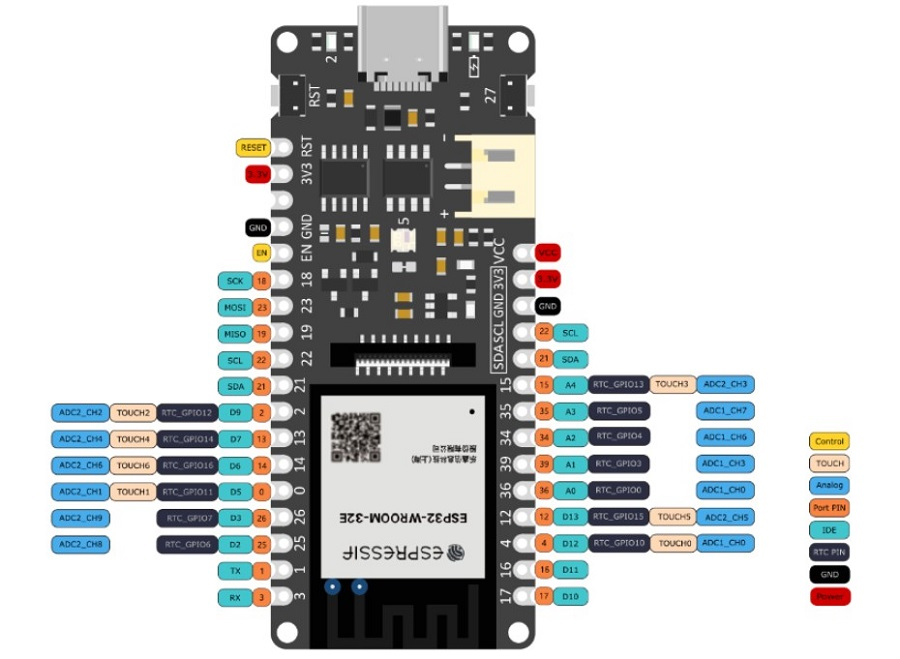

Pinout

DFR1139-003

Resources

Shipping List

  • 1 x FireBeetle 2 ESP32-E (N16R2) IoT Microcontroller
  • 1 x 18pin-2.54mm Male SIL Header
  • 1 x 18pin-2.54mm Female SIL Header
  • 1 x 14pin-2.54mm Male SIL Header
  • 1 x 14pin-2.54mm Female SIL Header


FireBeetle 2 ESP32-E (N16R2) IoT Microcontroller

  • Brand: DF Robot
  • Product Code: DFR1139
  • Weight: 0.024kg
  • Product Status : Active
  • Stock

    Warehouse Stock Status Location
    Centurion In Stock H20-03
    Stellenbosch In Stock U81
    Bulk Location No Stock

    We ship free of charge between branches to complete your order.

  • R234.00 (Inc Tax: R269.10)
