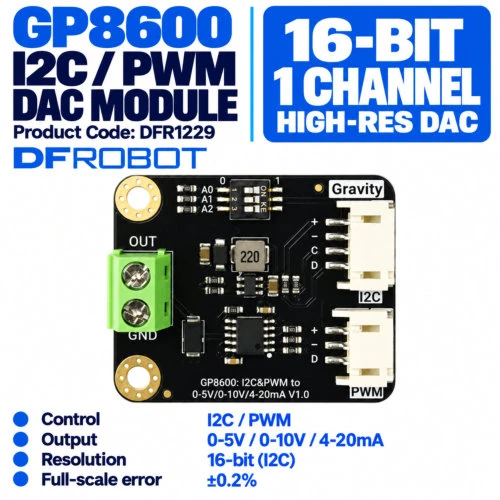

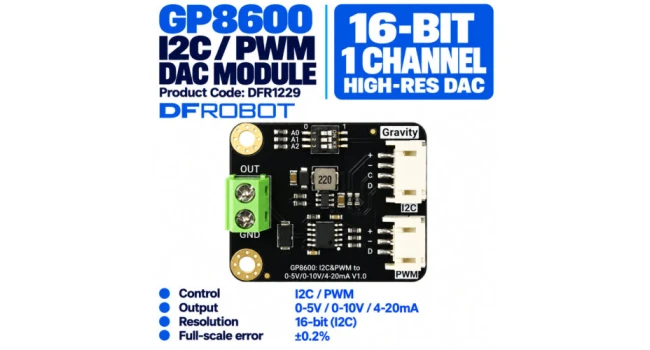

DF Robot GP6800 16BIT D/A Converter 4-20mA Output
The Gravity GP8600 module converts I²C or PWM signals into precise 0–5V, 0–10V or 4–20mA outputs, providing reliable 16-bit control for industrial automation, lighting, motors and valve applications.
Quick Spec
- DAC Chip: GP8600
- Output Channels: 1 channel
- Control Inputs: I²C or PWM
- Voltage Output: 0–5V or 0–10V
- Current Output: 4–20mA
- I²C Resolution: 16-bit
- PWM Resolution: 8-bit or 10-bit
- Full-Scale Error: ±0.2%
- Operating Voltage: 3.3V–5V
- I²C Addresses: 8 selectable addresses
- Interface: Gravity PH2.0 connectors
- PCB Dimensions: 38 × 32 × 12.39mm
Resources
Shipping List
- 1x DF Robot GP6800 16BIT D/A Converter
- 1x Gravity-4Pin I2C/UART Sensor Cable
- 1x Gravity-3Pin Analog Sensor Cable
DF Robot GP6800 16BIT D/A Converter 4-20mA Output
- Brand: DF Robot
- Product Code: DFR1229
- Weight: 0.02kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | In Stock | EE151 |
| Stellenbosch | No Stock |
We ship free of charge between branches to complete your order.
-
R325.00 (Inc Tax: R373.75)
Tags: GP8600, DFR1229, 16-Bit DAC, I2C, PWM, 0-5V, 0-10V, 4-20mA, Analog Output, Gravity Module, Industrial Control, DFRobot
