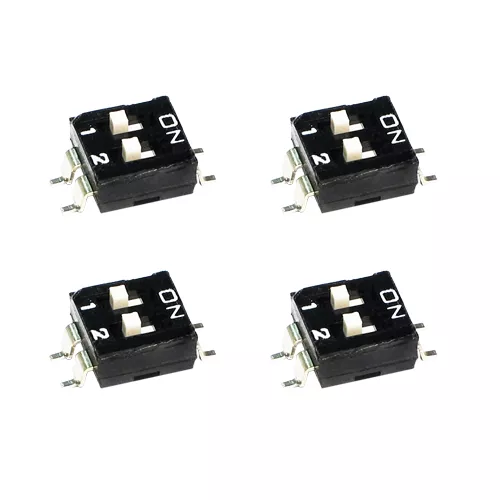

Dip Switch 2 Pole - SMD (4 Pack)
These DIP switchd are commonly used on a printed circuit board along with other electronic components and is commonly used to customize the behavior of an electronic device for specific situations.
Quick Spec
- Operation Force: 8N Max
- Operation Temperature: -25°C~+70°C
- Storage Temperature: -40°C~+85°C
- Stroke: 1.0mm
- Electrical Life: 2000 operations cycles per switch 24 VDC, 25mA
- Non-Switching Rating: 100mA, 50VDC
- Switching Rating: 25mA, 24VDC
- Contact resistance: (a)50mΩ max, at initial (b)100MΩ min. after life test
- Insulation Resistance: 100MΩ Min, ar 500VDC
- Dielectric Strength: 500VAC/1 minute
- Capacitance: 5pF max
- Circuit: Single pole single throw
- Package Style: SMD
Resources
Shipping List
- 4 x Dip Switch 2 Pole - SMD
Dip Switch 2 Pole - SMD (4 Pack)
- Brand: Generic
- Product Code: DIP-2P-SMD
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | In Stock | HH159 |
| Stellenbosch | No Stock |
We ship free of charge between branches to complete your order.
-
R15.00 (Inc Tax: R17.25)
