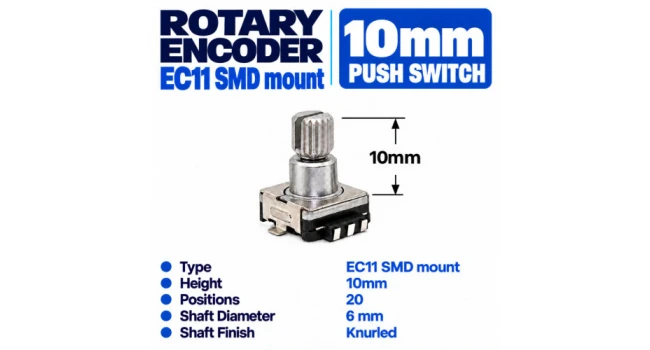

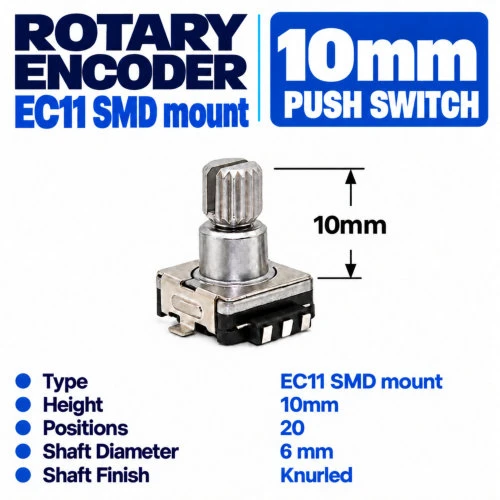

EC11 Encoder with Switch 10mm

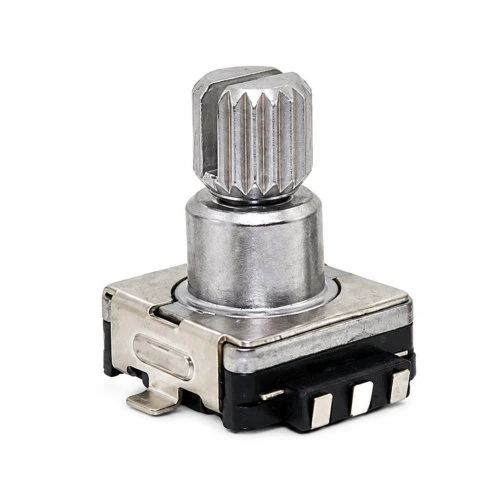

The EC11 SMD rotary encoder features 20 tactile clicks, continuous rotation, and an integrated push-to-select switch. Measuring 15mm long with a 6mm diameter knurled shaft, it outputs Gray code to indicate rotation amount and direction. Ideal for menu navigation and electronic controls. Knob not included.
Quick Spec
- Type: EC11
- Push-switch: Integrated
- Switch travel: 0.5 mm
- Detents: 20
- Shaft length: 10 mm
- Shaft diameter: 6 mm
- Shaft finish: Knurled
- Rating: 5 VDC, 10 mA
- Endurance: 100,000 cycles
- Output: Two-phase A/B
- Insulation resistance: ≥100 MΩ (250 VDC)
- Dielectric withstand: 300 VAC (1 minute)
- Operating temperature: −40…+85 °C
Resources
Shipping List
- 1 x EC11 Encoder with Switch 10mm
EC11 Encoder with Switch 10mm
- Product Code: EC11-SMD-10
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | No Stock | |
| Stellenbosch | No Stock |
We ship free of charge between branches to complete your order.
-
R10.00 (Inc Tax: R11.50)
Tags: EC11, rotary encoder, SMD, push switch, 10mm
