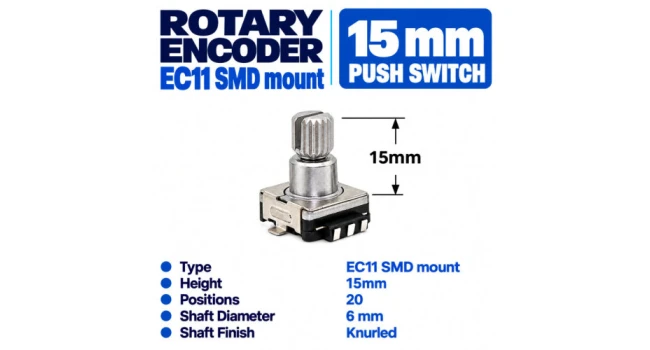

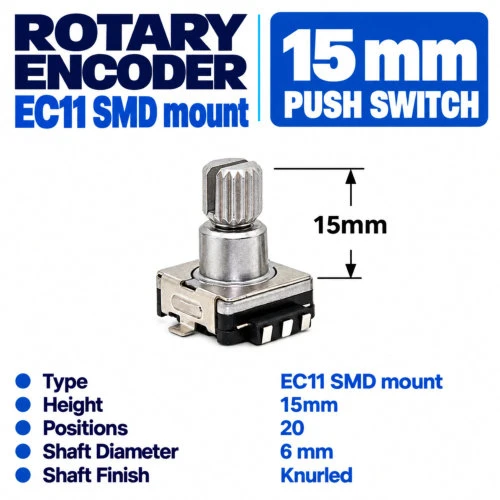

EC11 Encoder with Switch 15mm
The EC11 SMD rotary encoder features 20 tactile clicks, continuous rotation, and an integrated push-to-select switch. Measuring 15mm long with a 6mm diameter knurled shaft, it outputs Gray code to indicate rotation amount and direction. Ideal for menu navigation and electronic controls. Knob not included.
Quick Spec
- Encoder Type: EC11
- Integrated Switch: Yes
- Push-switch travel: 0.5mm
- Positions: 20 clicks
- Shaft length: 15mm
- Shaft diameter: 6mm
- Shaft finish: Knurled
- Rating: 5V DC, 10mA
- Operating life: 100,000 cycles
- Output: A/B, two-phase
- Insulation resistance: ≥100MΩ at 250V DC
- Withstand voltage: 300V AC for 1 minute
- Operating temperature: −40°C to +85°C
Resources
Shipping List
- 1 x EC11 Encoder with Switch 15mm
EC11 Encoder with Switch 15mm
- Product Code: EC11-SMD-15
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | No Stock | |
| Stellenbosch | No Stock |
We ship free of charge between branches to complete your order.
-
R10.00 (Inc Tax: R11.50)
Tags: EC11, rotary encoder, SMD, push switch
