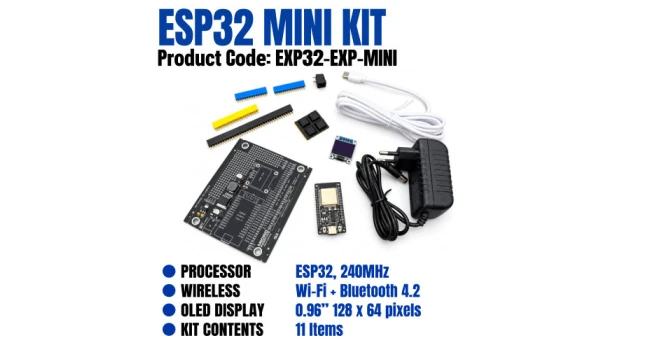

ESP32 Express Mini Kit

Presenting the ESP32-Express-Mini Kit: a streamlined and powerful toolkit designed for the efficient development of sophisticated electronics projects. This bundle is curated for professionals and hobbyists who demand precision and versatility in their prototyping endeavors.

Key Features:

• Efficient Power Management: Features a DC Jack input with a voltage range of 7-30V, including LM2596 and AMS1117-3.3 regulators for stable outputs of 5V 3A and 3.3V 0.8A.

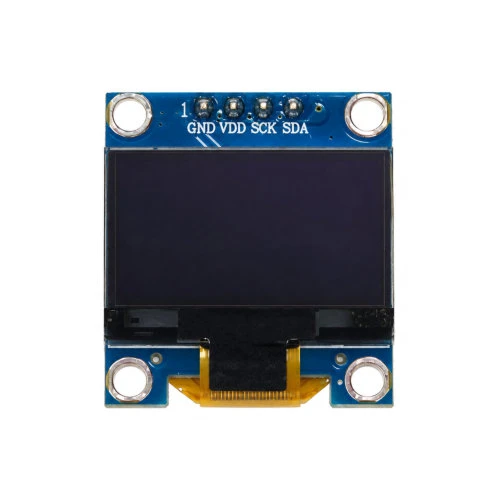

• OLED Display: Comes with a 0.96-inch white OLED display with an I2C interface, offering crisp visuals for data and graphics.

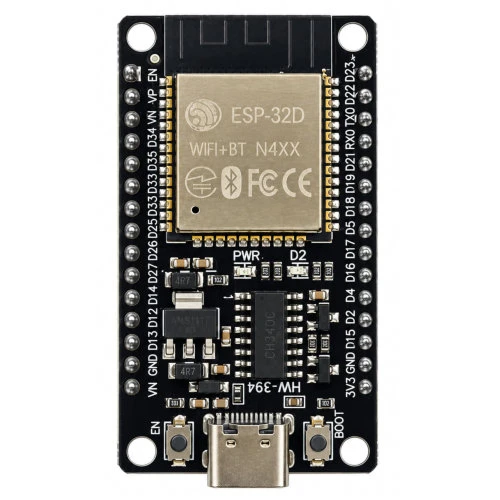

• Seamless Connectivity: The core ESP32 Development Board includes a CH340 USB-C interface, providing smooth programming and advanced Wi-Fi and Bluetooth capabilities.

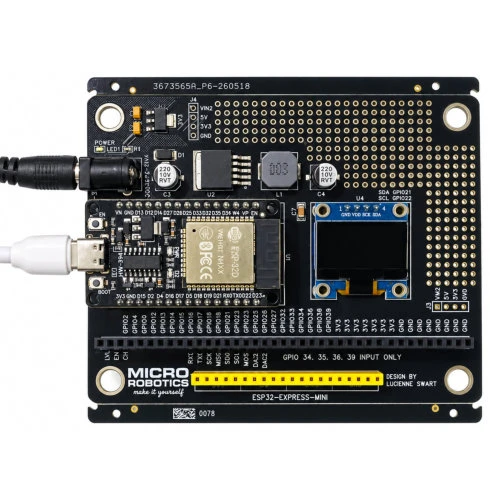

• Ample Prototyping Space: The board measures 85 x 110mm, it includes a prototyping area and various SIL Male Headers for easy connections.
• Ready-to-Start Package: This comprehensive kit includes everything needed to begin projects immediately, ensuring a focus on innovation from the start.

Quick Spec

• DC Jack Input Voltage Range: 7-30V
• Onboard Regulator Output: 5V 3A and 3.3V 0.8A
• OLED: White I2C 0.96"
• Dimensions: 85 x 110mm

Code

Resources

• Schematic
• PCB
• Gerber File

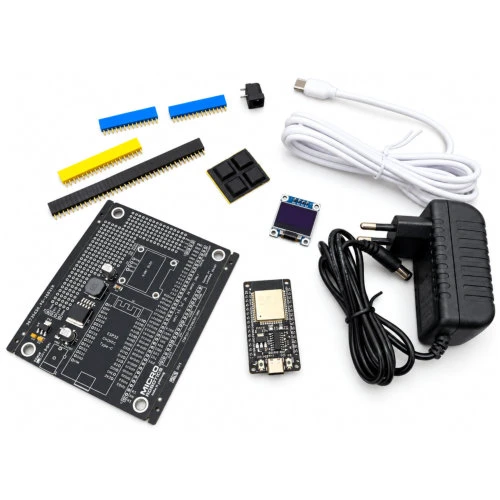

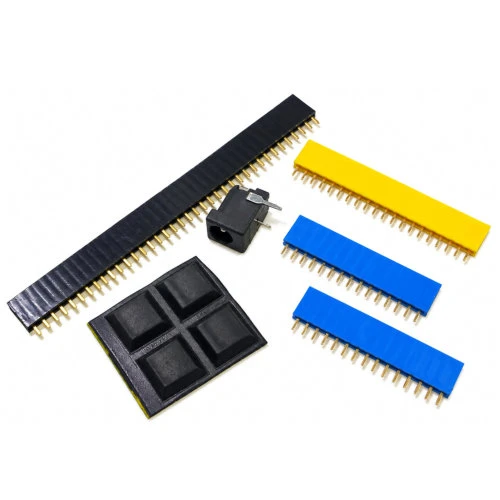

Shipping List

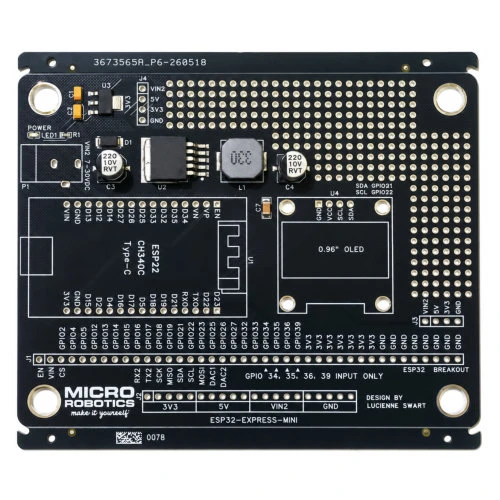

• 1 x ESP32 Express Proto Board
• 1 x ESP32 Development Board - CH340 (USB-C)
• 1 x OLED Display 0.96" I2C Interface
• 1 x DC Jack 2155 Standard
• 1 x 40-Pin SIL Male Header
• 1 x 20-Pin SIL Male Header
• 2 x 15-Pin SIL Male Header
• 2 x 4-Pin SIL Male Header
• 4 x Rubber pads

ESP32 Express Mini Kit

• Brand: Micro Robotics
• Product Code: EXP32-EXP-MINI
• Weight: 0.076kg
• Product Status : Active

Stock

Warehouse	Stock Status	Location
Centurion	In Stock	UA053 + UA054 + UA055 + UA056
Stellenbosch	In Stock	D5014
Bulk Location	No Stock

We ship free of charge between branches to complete your order.

• R320.00 (Inc Tax: R368.00)
