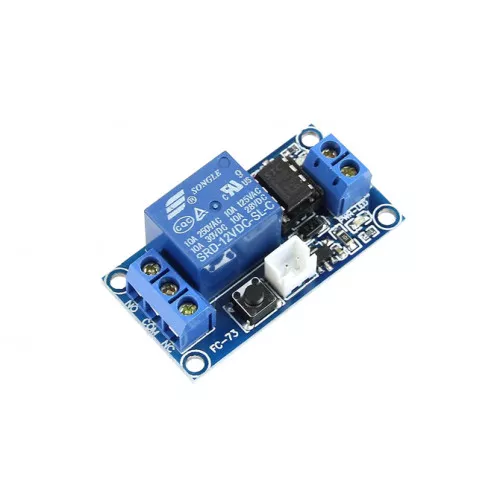

Latching Relay Single Channel - Trigger 12V
A latching relay is different to a normal relay - it only needs a low pulse to change between open and closed - you don't need a continuous current to keep it open.
The module's relay is single-pole, double throw and can handle 250VAC at 10A or 30VDC at 10A. A button is fitted to the module for easy switching access, or you can use the included cable, simply short the two wires to switch the relay - or use your own button circuitry that has a pull-up resistor. The module's control circuitry requires 12V DC.
Quick Spec
- Trigger Voltage: 12V
- Working Current: 70mA
- Standby Current: 1uA
- Load Current: AC 250V / 10A, DC 30V / 10A
- Trigger Mode: Low pulse trigger
- Dimensions: 50 x x 26mm
- Net Weight: 19g
Dimensions

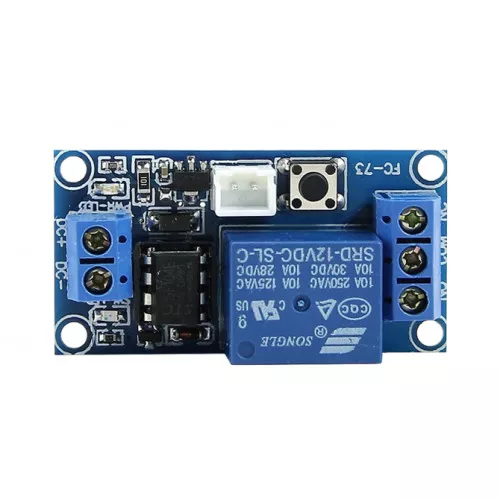

Board Layout
Shipping List
- 1 x 1 Channel Latching Relay - 12V
- 1 x ±150mm 2-PinJST Cable
Latching Relay Single Channel - Trigger 12V
- Brand: Generic
- Product Code: FC-73-12V
- Weight: 0.019kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | In Stock | Y064 |
| Stellenbosch | In Stock | 935 |
We ship free of charge between branches to complete your order.
-
R42.00 (Inc Tax: R48.30)
