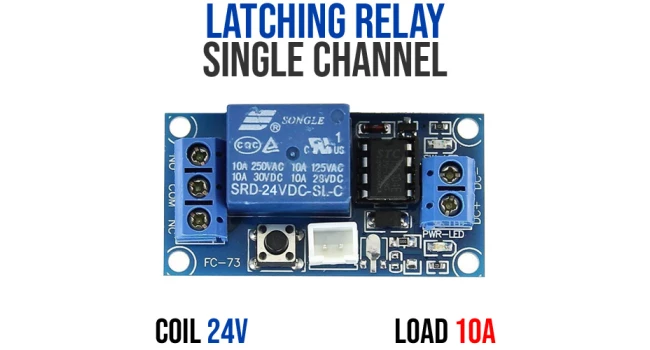

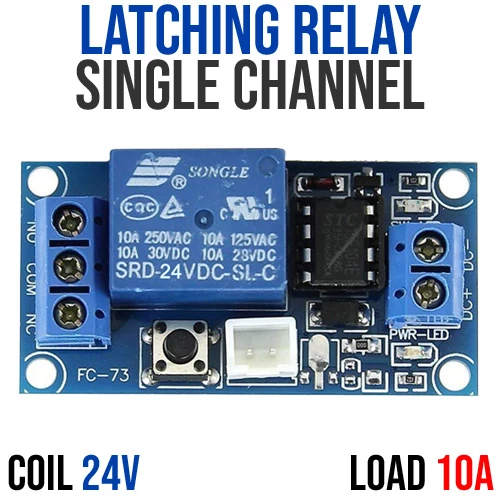

Latching Relay Single Channel - Trigger 24V
The Latching Relay Single Channel Module (24V Trigger) is a power-efficient switching solution that maintains its state without requiring continuous current. Unlike traditional relays, it only needs a brief low pulse to toggle between ON and OFF states, making it ideal for applications where energy efficiency and state retention are important.
Equipped with a single-pole double-throw (SPDT) relay, this module can handle high-power loads and includes a built-in push button for manual control. It also supports external triggering via the included cable or custom circuitry, allowing flexible integration into automation systems, remote controls, and DIY electronics projects.
Quick Spec
- Trigger voltage: 24V DC
- Working current: 70mA
- Standby current: 1µA
- Load capacity:
- AC: 250V / 10A
- DC: 30V / 10A
- Relay type: SPDT (single-pole, double-throw)
- Trigger mode: low pulse trigger
- Control: onboard push button + external trigger input
- Dimensions: 50 × 26 mm
Dimensions

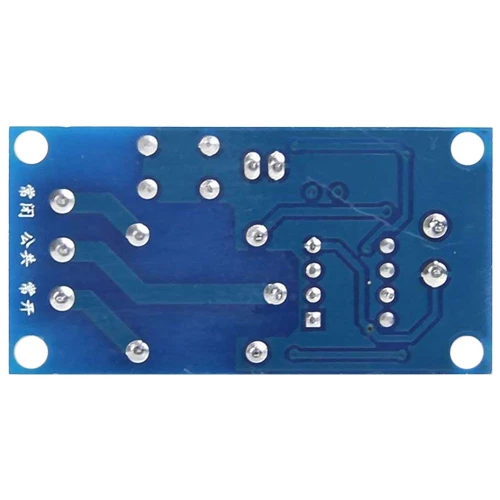

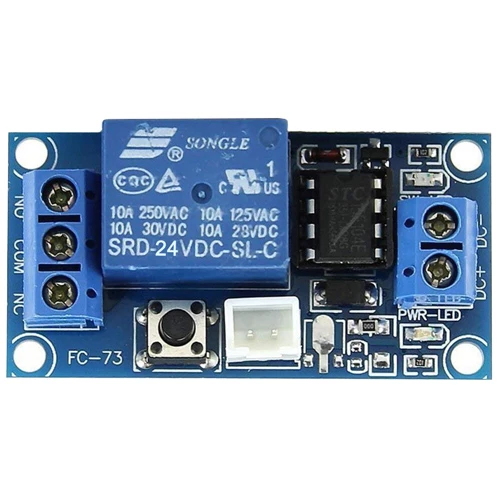

Board Layout
Shipping List
- 1 x 1 Channel Latching Relay - 12V
- 1 x ±150mm 2-PinJST Cable
Latching Relay Single Channel - Trigger 24V
- Brand: Generic
- Product Code: FC-73-24
- Weight: 0.02kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | In Stock | AX3-03 |
| Stellenbosch | In Stock | B0343 |
We ship free of charge between branches to complete your order.
-
R42.00 (Inc Tax: R48.30)
