• Description

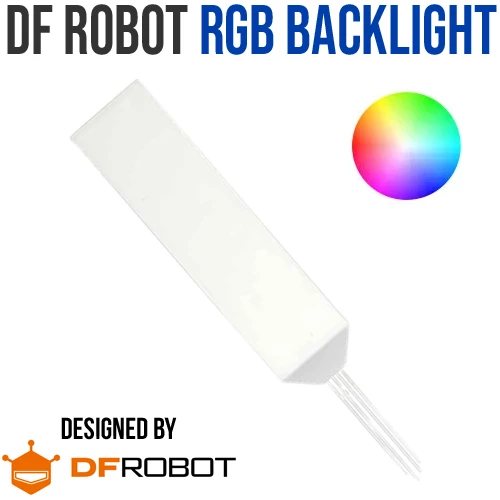

DF Robot RGB LCD Backlight Module

The DF Robot RGB LCD Backlight Module is a versatile lighting component designed for use with 16x2 LCD displays, providing vibrant and customizable backlighting for enhanced visual output. Based on the RGB color model, this module allows you to mix red, green, and blue channels to produce a wide spectrum of colors, enabling dynamic display effects and improved readability in various lighting conditions.



Compact and efficient, the module features a built-in common anode design and can be used not only as an LCD backlight but also as a general-purpose RGB LED indicator. Its low power consumption and wide operating temperature range make it suitable for a variety of electronics projects, from prototyping to embedded systems.

Quick Spec

• RGB color model (red, green, blue channels)
• Forward voltage: 3.0V – 3.2V
• Reverse voltage: 5V
• Power consumption: up to 75 mW
• Common anode configuration
• Operating temperature: -40°C to 80°C
• Dimensions: 73.2 × 18.5 × 2.8 mm

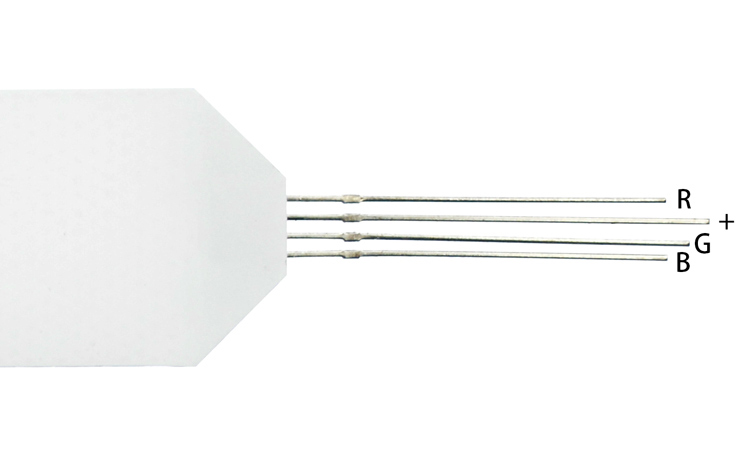

Pinout

Resources

• Product Page

Shipping List

• 1 x DF Robot RGB LCD Backlight Module

DF Robot RGB LCD Backlight Module

• Brand: DF Robot
• Product Code: FIT0562
• Weight: 0.007kg
• Product Status : Active

Stock

Warehouse	Stock Status	Location
Centurion	In Stock	H18-02
Stellenbosch	In Stock	M67
Bulk Location	No Stock

We ship free of charge between branches to complete your order.

• R29.00 (Inc Tax: R33.35)
