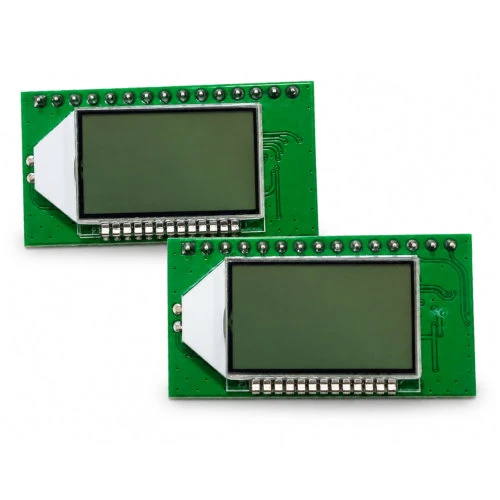

FM Transmit + Receive Module Kit
Compact FM transmitter and receiver kit provides adjustable stereo broadcasting, LCD frequency display, USB audio support, UART control, frequency memory and flexible 3–5V operation for electronics projects and educational experimentation.
Quick Spec
- Kit Type: FM transmitter and receiver module pair
- Transmission Frequency: 76–108MHz
- Modulation: Standard FM frequency modulation
- Audio Format: Selectable mono or stereo
- Supply Voltage: 3–5V DC
- Transmitter Current: Approximately 35mA
- Transmitter Output Power: +4dBm
- Audio Response: 50Hz–18kHz
- Frequency Adjustment: 0.1MHz and 1MHz steps
- Control Interfaces: Push-button, USB audio and TTL UART

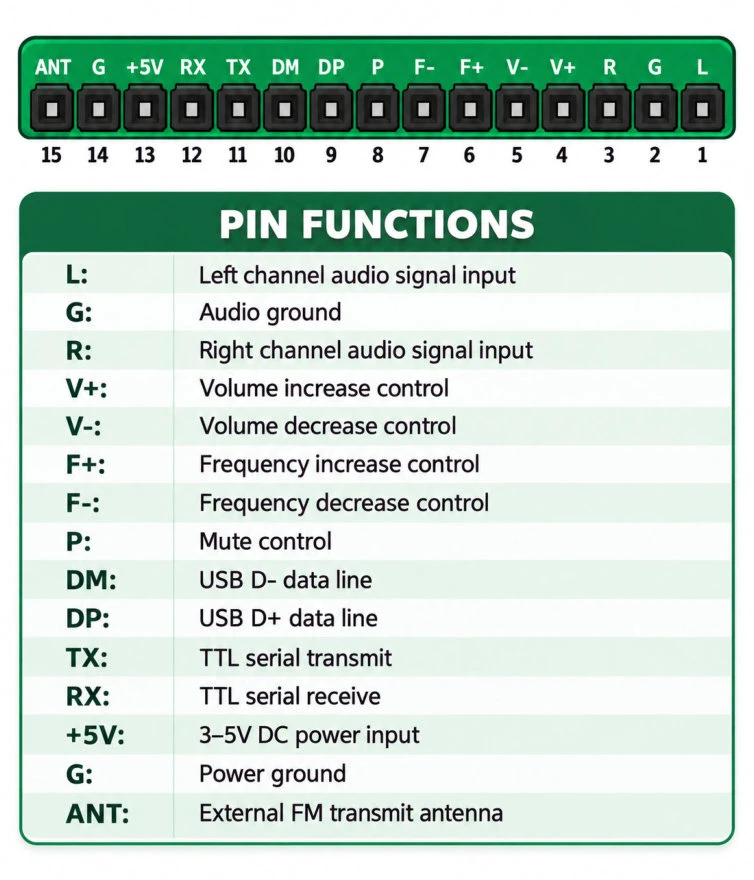

Pin Definitions
Shipping List

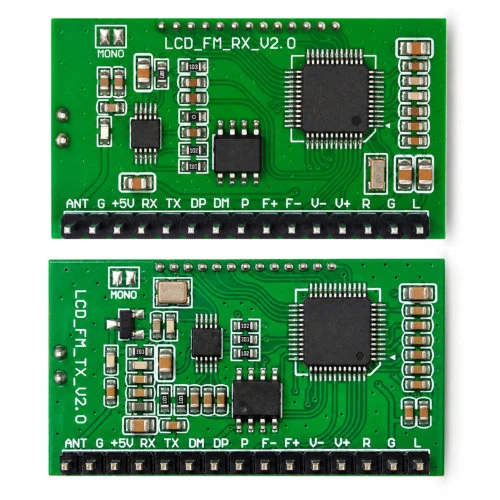

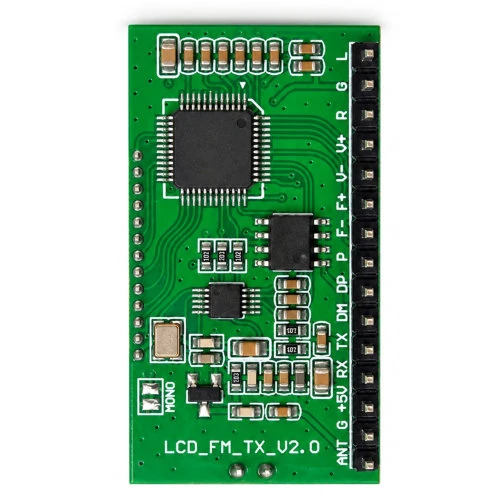

- 1x FM transmitter module

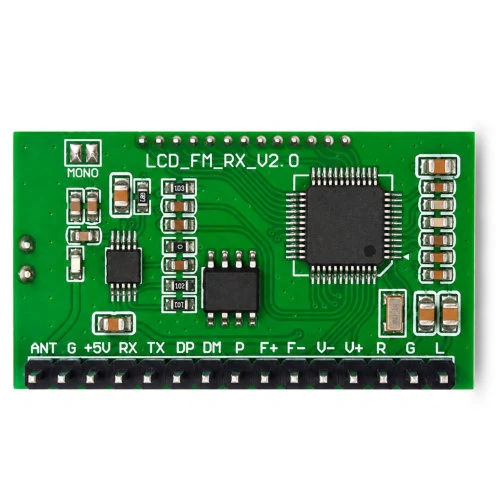

- 1x FM receiver module
FM Transmit + Receive Module Kit
- Brand: Generic
- Product Code: FM-TXRX-LCD-MODULE
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | In Stock | AA158 |
| Stellenbosch | In Stock | V80 |
We ship free of charge between branches to complete your order.
-
R238.00 (Inc Tax: R273.70)
