Magnetic Flow Switch 2 to 30L/min 1/2"
The FS-1P-08-4N is a magnetic water flow switch. It monitors liquid flow and triggers a signal when flow begins or stops, typically for pump protection. It is rated for low pressure applications (∼1 MPa) and handles volumes up to about 30 L/min.
Quick Spec
- Model: FS-1P-08-4N
- Flow Rate : 2 to 30 L/min
- Max Switching Voltage: 12-24V
- Contact Resistance: 200mΩ
- Max. Contact Rating: 10W/70W
- Max. Switching Current: 0.5A
- Max. Pressure: 1MPa
- Operating Temperature: -30 ~ +85°C
- Dimensions: 80 x 21.5mm
Resources

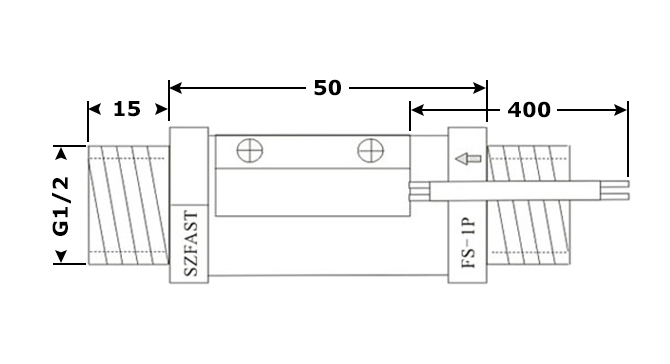

Dimensions
Shipping List
- 1 x Magnetic Flow Switch 2 to 30L/min 1/2"
Magnetic Flow Switch 2 to 30L/min 1/2"
- Brand: Generic
- Product Code: FS-1P-2-4N
- Weight: 0.035kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | In Stock | CX3-02 |
| Stellenbosch | In Stock | J7026 |
We ship free of charge between branches to complete your order.
-
R132.00 (Inc Tax: R151.80)
