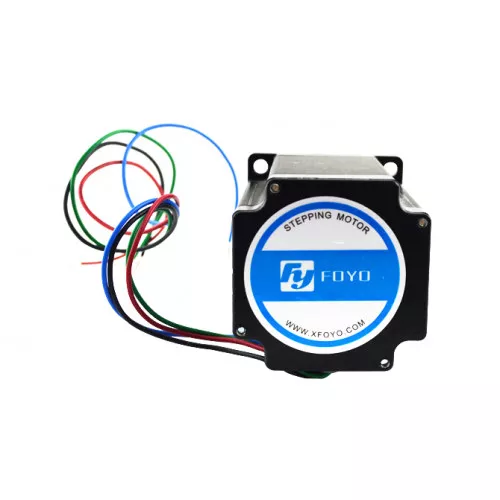

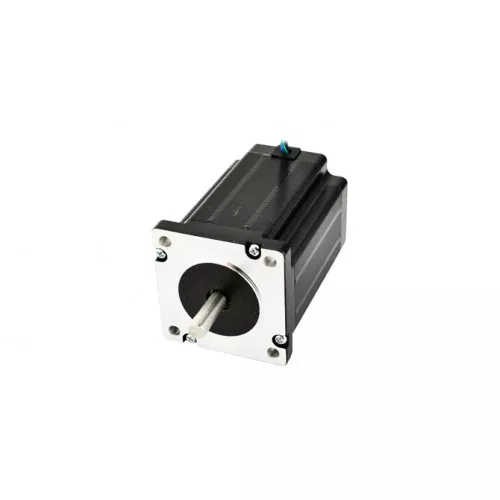

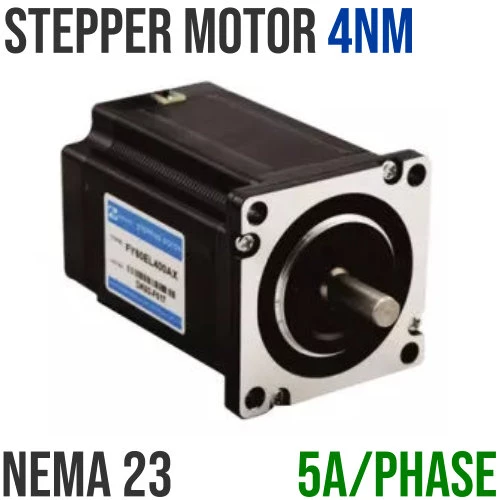

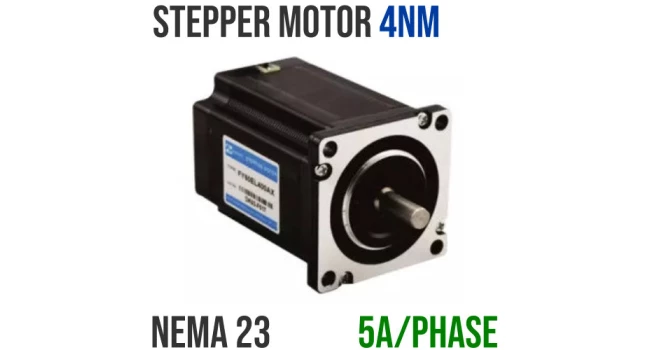

Stepper Motor 4Nm 1.8Deg 5A

This high-torque hybrid stepping motor has a 1.8° step angle (200 steps/revolution). Each phase draws 5A at 24V, allowing for a holding torque of 4N. The motor has four color-coded wires terminated with bare leads that allow it to be controlled by both bipolar stepper motor driver.

Quick Sec

  • Part No.: FY60EC500A
  • Frame Size: NEMA24
  • Step Angle: 1.8 degree
  • Voltage: 24VDC
  • Current: 5 A/phase
  • Holding torque: +/- 4NM / 40.8Kg-cm
  • Number of wire leads: 4
  • Weight: 1.6kg
  • Length: 100mm

Dimensions

FY60-EC5000-A-004

Wiring Diagram

FY56-EC350-A-003

Resources

Shipping List

  • 1 x Stepper Motor 4Nm 1.8Deg 5A


Stepper Motor 4Nm 1.8Deg 5A

  • Brand: Generic
  • Product Code: FY60EC5000A
  • Weight: 1.594kg
  • Product Status : Active
  • Stock

    Warehouse Stock Status Location
    Centurion In Stock US37 + US38
    Stellenbosch No Stock
    Bulk Location No Stock

    We ship free of charge between branches to complete your order.

  • R945.00 (Inc Tax: R1,086.75)
