LED Control Card HUB75 Wi-Fi and U Disk - 4 Channel
The LED Control Card HUB75 Wi-Fi and U Disk - 4 Channel (HD-WF) is equipped with 4 HUB75E Ports, which is a full color series of control card. It supports Wi-Fi and U disk to update programs. It is suitable for door lintel led screens, store signboard screens, Vehicle-mounted screen and other occasions.
Application software: HD2020 and LedArt (APP). The software interface is simple, the operation is convenient, and the rich display mode has the characteristics of low cost and high cost performance, and supports various full-color led modules.
Quick Spec
- Support Module: Support HUB75port full color module, support normal and ICN2038 IC
- Scan mode: Support static to 1/32S
- Control range: 768*128, Widest 1280, Highest 256
- Communication Port: Wi-Fi, U-Disk
- FLASH Capacity: 8M Byte
- Support RGB: Full-color module can display red, green, blue, yellow, Purple, green, white, Grey level 8 level, support full color text.
- Program Quantity: 999 programs, support switch the program by wifi remote.
- Area Quantity: 20 pcs areas with separate zone and separate special effects and border.
- Display Showing: Text, Animated word、3D Word, Image & Text (Picture, SWF), Excel, Time, Temperature (humidity), Timing, Count, Lunar calendar
- Automatic switch screen: Support timer switch machine
- Dimming: Support brightness setting, time period brightness setting
- Power supply: Micro USB, standard 5V
- Certification: CE, FCC, RoHS, BIS
- Dimensions: 94.5 x 58.5mm
- Net Weight: 32g

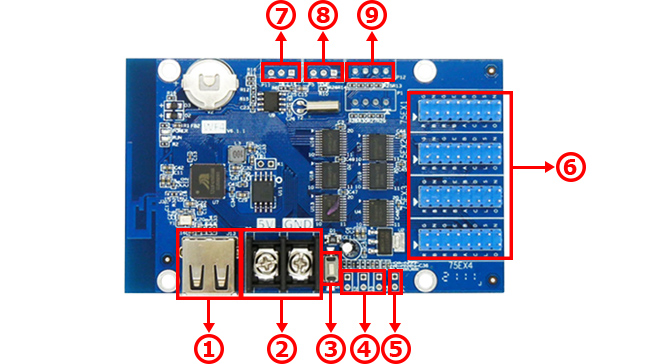

Board Layout
- USB ports, for updating programs by U-disk
- Micro-USB port, for 5V power supply, can power by Micro-USB cable directly
- Test key, for testing LED screen status
-
- S2，Connect the point switch, switch to the next program, the timer starts, count plus.
- S3，Connect the point switch, switch the previous program, timer reset, count down.
- S4，Connect the point switch, program control, timing pause, count reset.
- P7，Connect the brightness sensor
- HUB75E port for connecting to LED Display
- P12, Connect PM2.5 or PM10 sensor
- P5，Connect the temperature sensor
- P11，Connect the IR, by remote control
Resources
Shipping List
- 1 x LED Control Card HUB75 Wi-Fi and U Disk - 4 Channel
LED Control Card HUB75 Wi-Fi and U Disk - 4 Channel
- Brand: Generic
- Product Code: HD-WF4
- Weight: 0.032kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | No Stock | |
| Stellenbosch | No Stock |
We ship free of charge between branches to complete your order.
-
R305.00 (Inc Tax: R350.75)
