Universal Hi-Link Power Module PCB

The Universal Hi-Link Power Module PCB is an in-house design, providing seamless compatibility with all 10W Hi-Link Power Supplies in our stock. This compact 70 x 30mm PCB is designed to handle a maximum power input of 10W (2A) from the power supplies we offer. Elevate your electronics with this reliable, customized power solution.

The Board has been designed to allow for fuses and switches to be added to the board.

Please Note that the tracing will have to be broken in order to add the switches and fuses.

Quick Spec

• Compatible Hi-Link PSU's:
• Hi-Link AC-DC Module 5V 2A - 10W
• Hi-Link AC-DC Module 12V 0.83A - 10W
• Hi-Link AC-DC Module 24V 0.42A - 10W
• Hi-Link AC/DC 3.3V 1.5A 5W Power Module
• Hi-Link AC-DC Module 5V 1A - 5W
• Hi-Link AC-DC Module 12V 0.45A - 5W
• Hi-Link AC/DC 3.3V 1A Power Module
• Hi-Link AC/DC 5V 0.6A 3W Power Module
• Hi-Link AC/DC 12V 0.25A 3W Power Module
• Max. 2A Output
• Dimensions: 70 x 30mm
• Net Weight: 8g

Resources

• Gerber File

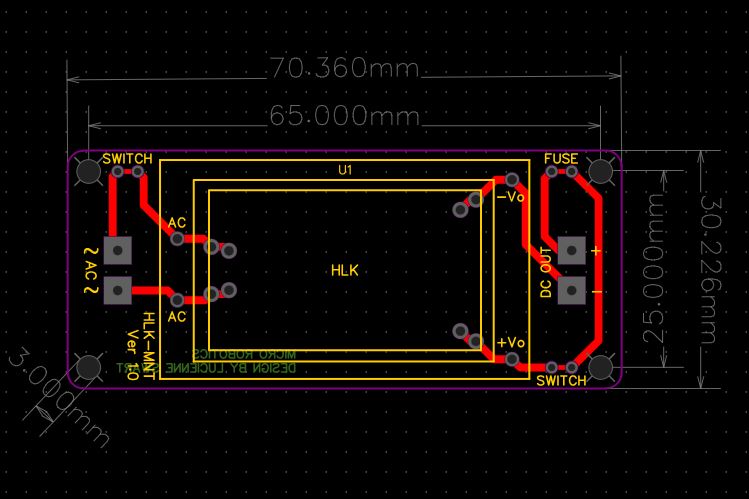

• Dimensions
• PCB

Shipping List

• 1 x Universal Hi-Link Power Module PCB

Universal Hi-Link Power Module PCB

• Brand: Micro Robotics
• Product Code: HLK-MNT
• Weight: 0.008kg
• Product Status : Active

Stock

Warehouse	Stock Status	Location
Centurion	No Stock
Stellenbosch	No Stock
Bulk Location	No Stock

We ship free of charge between branches to complete your order.

• R10.00 (Inc Tax: R11.50)
