• Nextion Expansion Board for Enhanced Display Series

Expansion Board For Nextion Enhanced Display I/O Extended

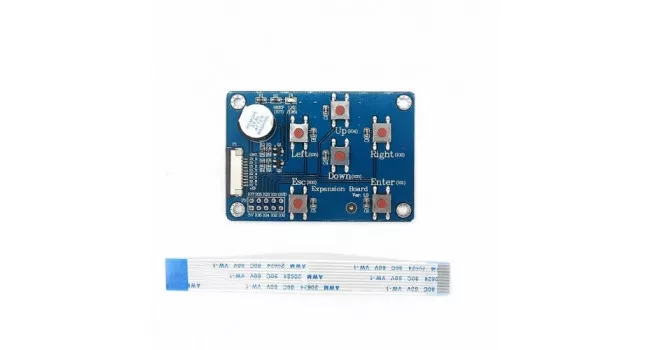

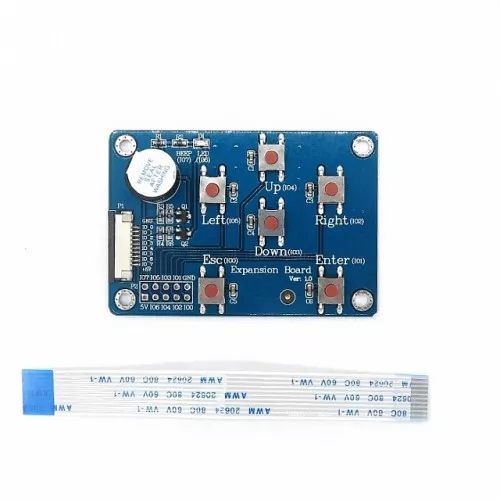

The first expansion board for Nextion Enhanced HMI display. Enhanced and higher version Nextion displays supports 8 GPIO, thus we can use this expansion board to control Nextion. The board has 6 buttons, which include Esc, Enter, Left, Right, UP, Down. Also, indicating buzzer and leds are included.

Note: this expansion board can only work with Nextion Enhanced Display, not for basic Nextion Display.

Quick Spec

  • Compatible with Nextion Enhance Series
  • Board Size: 65 x 45 mm
  • Model: IM160530001
  • Operation Level: Digital 5V

Resources

Shipping List

  • 1 x Expansion Board For Nextion Enhanced Display I/O Extended


Nextion Expansion Board for Enhanced Display Series

  • Brand: Itead
  • Product Code: IM160530001
  • Stock

    Warehouse Stock Status Location
    Centurion In Stock K4
    Stellenbosch In Stock 888

    We ship free of charge between branches to complete your order.

  • R45.00 (Inc Tax: R51.75)
