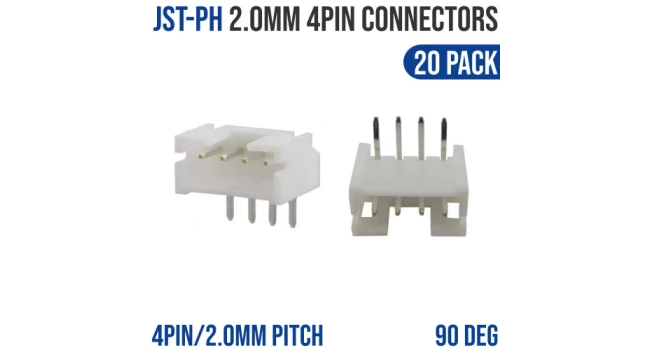

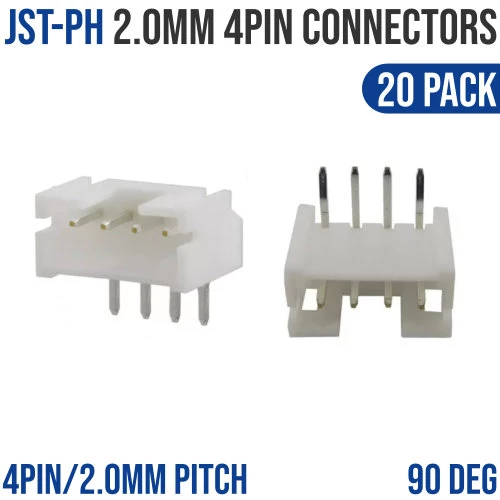

JST-PH 2.0mm 4 Pin 90 Deg Connector(20 Pack)
This is a thin, low-profile 2.0mm pitch connector 5mm in height after mounting and 10mm in width. It is designed to meet the demand for high-density connection of internal wires to printed circuit boards. It is compact, highly reliable and low in cost. The pin headers have closed side walls to ensure precise insertion and prevent foreign substances from entering during soldering. The connectors are highly reliable with their contacts, even in the case of strong vibrations and high mechanical loads.
Quick Spec
- Serie: JST-PH
- Pitch: 2mm
- Number of Contacts: 4
- Body Orientation:90 Deg/Right Angle
- Mount Type: Through Hole
- Current Rating: 2A
- Dimensions: 10 x 5 x 4.7mm
- Net Weight: 5g
Resources
Quick Fact - So what's behind the JST name
The JST connector is an electrical connector that was designed - Japan Solderless Terminal (JST). JST manufactures numerous series and pitches (pin-to-pin distance) of connectors. JST connectors are commonly used by electronics hobbyists and consumer products for rechargeable battery packs and a wide variety of connections. The term "JST" is commonly and incorrectly used as a vernacular term meaning a small white electrical connector mounted on PCBs inside products manufactured from Asia.
Shipping List
- 20 x JST-PH 2.0mm 4 Pin 90 Deg Connector
JST-PH 2.0mm 4 Pin 90 Deg Connector(20 Pack)
- Brand: Generic
- Product Code: JST-PH-4P-90
- Weight: 0.005kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | In Stock | AX1-07 |
| Stellenbosch | In Stock | Z2008 |
We ship free of charge between branches to complete your order.
-
R10.00 (Inc Tax: R11.50)
