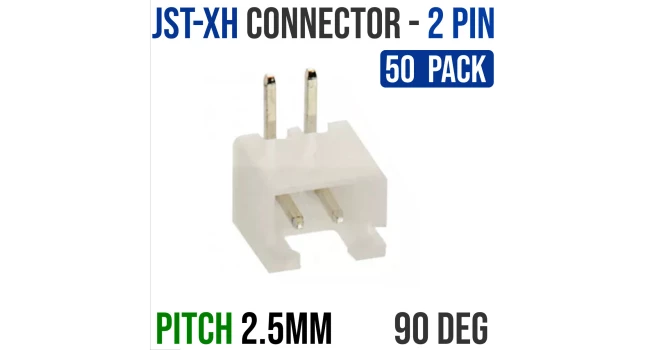

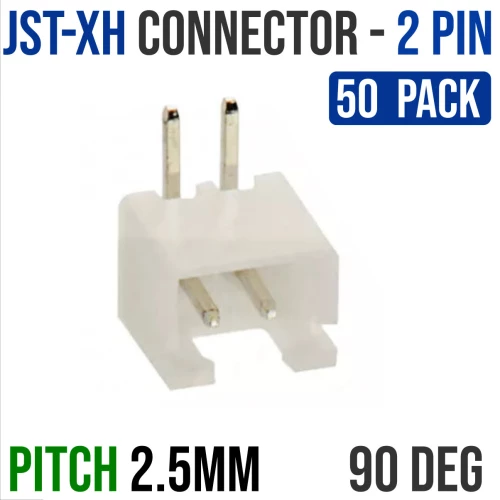

JST-XH 2.5mm 2 Pin Connector 90 Deg (50 Pack)
JST XH connectors were developed based on the high reliability and versatility of the NH series connectors. The connector is very small with a height of 7.4mm and a pitch of 2.5mm.
Quick Spec
- Standard: JST-XH
- Pitch: 2.5mm
- Pins: 2
- Current Rating: 3A AC, DC (AWG 22)
- Voltage Rating: 250V AC, DC
- Temperature Range: -25oC ~ +85oC
- Contact Resistance: Initial: 10mΩ
- Insulation Resistance: 1 000MΩ min
- Withstanding Voltage: 1 000 VAC/minute
- Applicable Wire: AWG 30 ~ 22
- Dimensions: 7.4 x 7.4 x 5.6mm
- Net Weight: 13g
Resources
Quick Fact - So what's behind the JST name
The JST connector is an electrical connector that was designed - Japan Solderless Terminal (JST). JST manufactures numerous series and pitches (pin-to-pin distance) of connectors. JST connectors are commonly used by electronics hobbyists and consumer products for rechargeable battery packs and a wide variety of connections. The term "JST" is commonly and incorrectly used as a vernacular term meaning a small white electrical connector mounted on PCBs inside products manufactured from Asia.
Quick Spec
- 50 x JST-XH (2.54mm) 2 Pin 90 Deg Connector
JST-XH 2.5mm 2 Pin Connector 90 Deg (50 Pack)
- Brand: Generic
- Product Code: JST-XH-2P-90
- Weight: 0.013kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | In Stock | UE033+UE034 |
| Stellenbosch | In Stock | D6028 |
We ship free of charge between branches to complete your order.
-
R12.00 (Inc Tax: R13.80)
