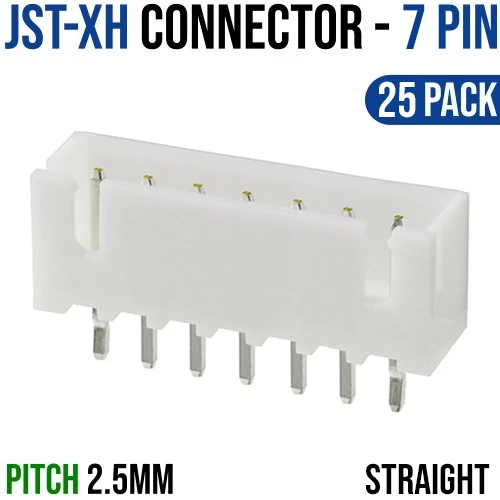

JST-XH 2.54mm 7 Pin Straight Connector (25 Pack)
JST XH connectors were developed based on the high reliability and versatility of the NH series connectors. The connector is very small with a height of 7.4mm and a pitch of 2.54mm.
With the development of electronic products, a wide range of connectors are present in electronic equipment. Currently, malfunctions caused by poor connectors account for more than 37% of all equipment failures. The JST connector plays the role of conducting current and connecting signal in electronic equipment. Connectors are easier for professional division of labor, parts replacement, troubleshooting and quick assembly. They are widely used in various equipment because of their stronger and more reliable features.
Quick Spec
- Current Rating: 3A AC, DC (AWG 22)
- Voltage Rating: 250V AC, DC
- Temperature Range: -25oC ~ +85oC
- Orientation: Straight
- Contact Resistance:
- Initial: 10mΩ
- After Environment Testing: 20mΩ
- Insulation Resistance: 1 000MΩ min.
- Withstanding Voltage: 1 000 VAC/minute
- Applicable Wire: AWG 30 ~ 22
- Pitch: 2.54mm
- Dimensions: 7.4 x 20 x 5.6mm
- Net Weight: 15g
