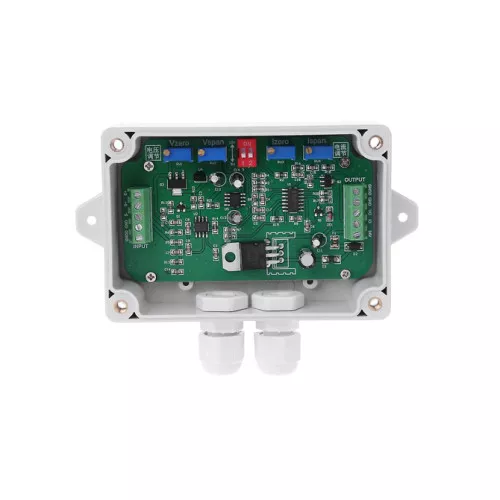

Load Cell Transmitter 4-20mA 12V

This Load cell transmitter is designed for signal conditioning on signals from weight brake, weight bridge, weighing sensor or load cell module, etc. It transmits and converts load cell signal into standard dc current 4-20mA and voltage 0-5V 0-10V output. Its output is adjustable through potentiometer, and power supply is 12-24VDC. Water-proof enclosure, high precision circuits used makes its output more stable and accurate.

Quick Spec

• Housing and wire connectors are waterproof design, good sealing, suitable for harsh environments
• Ultra- high-precision op amp circuit, high accuracy, good stability
• Input has reverse polarity protection, surge protection, overcurrent protection
• Suitable for weighing, pull pressure, torque, and other strain sensor
• Working Voltage: DC 12-24V
• Output Signal: voltage (0-5V, 0-10V, 1-5V, ± 5V) 4-20ma
• Input Signal: sensor sensitivity 2.0MV/V
• Output Incentive: 5V (E+)
• Operating Temperature Range: -20 - 80°C
• Operating Humidity: 10% RH-90% RH (non-condensing)
• Accuracy: ±0.1% F.S
• Precision: ±0.05% F.S
• Gear Selection: dial switch turn OFF , V0 output 0-5v , 1 turn to ON V0 output 0-10V
• 1 and 2 both turn to OFF VO output 0-5v IO output 4-20MA
• Dimensions: 65 x 86 x 38mm

Dimensions

Layout

Instructions

1. Zero Adjustment

First of all, make the system is in the idle state, adjust the marking "ZERO" potentiometer to adjust the zero offset. The multimeter is used to measure the output voltage or current, let show a value as close as possible to the zero value display. Or change the magnification zero change will become big.

2. Gain Adjustment

The system loading a certain weight value (the recommended range: 80% ~ 100% FS), the calculation of the output current value according to the load weight and the maximum weighting value relation, using the digital multimeter monitoring output, potentiometer to adjust amplifier gain spin labeled "SPAN".

3. The retest

The system is in the idle state, measuring the zero output; loading a certain weight value, output voltage measurement whether fluoride expectation magnification If not, repeat steps 1, 2, and adjust again.

Shipping List

• 1 x Load Cell Transmitter 4-20mA 12V
