EasyPlug Arduino Starter Kit

The EasyPlug Arduino Starter Kit from keyestudio is great for avid hobbyists and beginners. Its unique EASY plug interface makes the wire connection easier than ever! You never have to worry about wrong connection or complicated soldering, avoiding component damage due to wrong wiring or wrong soldering. It's both safe and environmental-friendly.

KS0240-002

This kit includes everything that you will need to get started with Arduino and coding in C, from the Easy Plug Control board, leds, buzzers, and displays. The kit uses RJ11 6P6C connectors which makes wiring and connecting really easy.

Quick Spec

  • Microcontroller: ATmega328P-AU
  • Operating Voltage: 5V
  • Input Voltage (recommended): 7-12VDC
  • Single Digital Ports: 5 (D5-D9) (of which 3 provide PWM output)
  • PWM Digital Ports: D5, D6, D9
  • Analog Input Pins: 4 (A0-A3)
  • DC Current per I/O Pin: 20 mA
  • Flash Memory: 32KB (ATmega328) of which 0.5 KB used by bootloader
  • SRAM: 2KB
  • EEPROM: 1 KB
  • Clock Speed: 16 MHz

Board Layout

KS0240-005

Resources

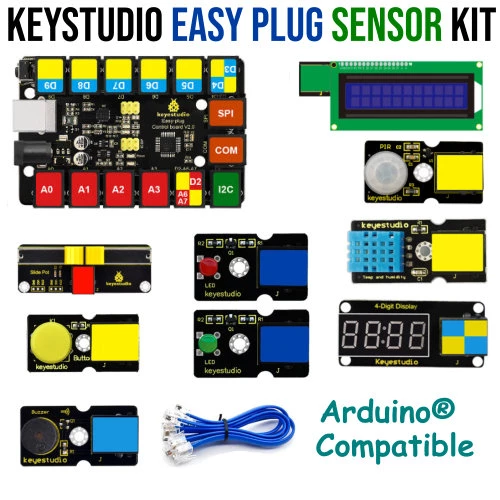

Shipping List

  • 1 x EASY Plug Control Board V2.0
  • 1 x EASY Plug Green LED Module
  • 1 x EASY Plug Red LED Module
  • 1 x EASY Plug Digital Push Button
  • 1 x EASY Plug DHT22 Temperature and Humidity Sensor
  • 1 x EASY Plug 1602 LCD Module
  • 1 x EASY plug 4-digit LED Display
  • 1 x EASY Plug Active Buzzer Module
  • 1 x EASY Plug PIR Sensor
  • 1 x EASY plug Analog Slider Module
  • 10 x Blue RJ11 6P6C Cable
  • 1 x USB Programming Cable
  • 1 x Plastic Case


EasyPlug Arduino Starter Kit

  • Brand: Generic
  • Product Code: KS0240
  • Stock

    Warehouse Stock Status Location
    Centurion Limited Stock U283
    Stellenbosch Limited Stock 116

    We ship free of charge between branches to complete your order.

  • R928.00 (Inc Tax: R1,067.20)
