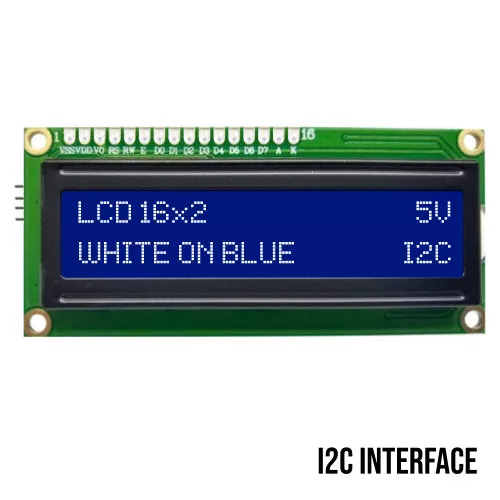

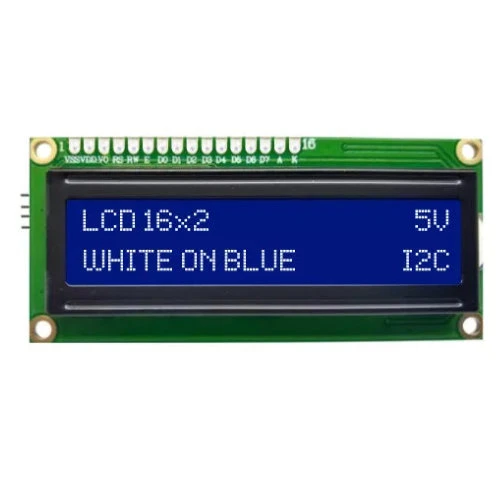

LCD 16x2 Character Display, White on Blue Background, I2C Interface, 5V
Only 4 wires required to control the display, Power(5V, GND) and the I2C signals SDA and SCL. This is a 16x2 Display white text on blue background.

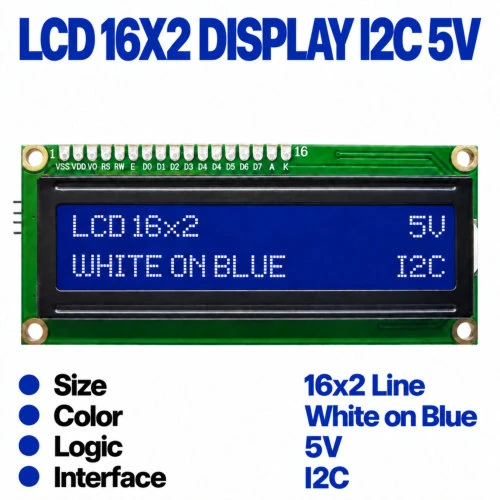

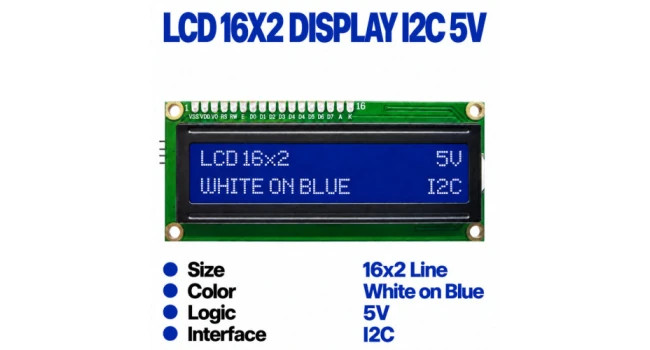

Quick Spec
- LCD Size: 16x2 Line
- Color: White Text on Blue Background
- Power/Logic: 5V
- Interface: I2C
- I2C Chipset: MCP23008
- Interface: I2C

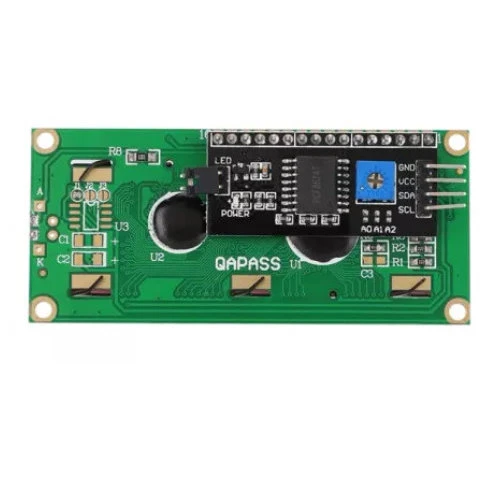

Board Layout
I2C Address Setup
The LCD2004 board utilized the PCF8574 I/O expander. This nifty little chip provides eight bits of parallel I/O addressable by a I2C bus address – 0x00 to 0x27. SainSmart tied all address leads to Vcc, so the LCD2004 board’s I2C address is permanently fixed at hex 27. This is rather limiting since no additional LCD2004s can be added to the bus. Anyway, you simply address the board and write an eight bit value which is then presented on the output pins of the PCF8574, which, in this case, are connected to the HD44780 based LCD screen.
Controlling your I2C Display with Arduino
Arduino Code
#include <wire.h>
#include <liquidcrystal_i2c.h>
// Set the LCD address to 0x3F for a 16 chars and 2 line display
LiquidCrystal_I2C lcd(0x3F, 16, 2);
void setup()
{
// initialize the LCD
lcd.begin();
// Turn on the blacklight and print a message.
lcd.backlight();
lcd.print("Hello, world!");
}
void loop()
{
// Do nothing here...
}
Shipping List
- 1 x LCD 16X2 LCD with I2C Interface
LCD 16x2 Character Display, White on Blue Background, I2C Interface, 5V
- Brand: Generic
- Product Code: LCD1602-WB-5V-I2C
- Weight: 0.038kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | No Stock | |
| Stellenbosch | No Stock |
We ship free of charge between branches to complete your order.
-
R46.00 (Inc Tax: R52.90)
