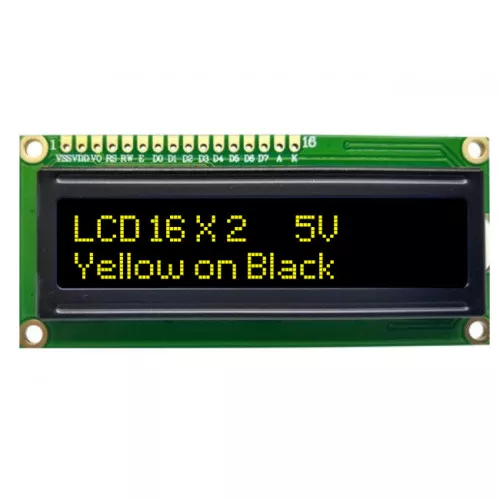

• LCD 16x2 Character Display, Yellow on Black Background, 5V

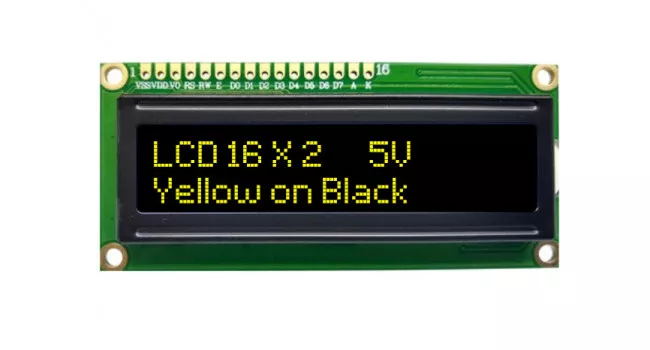

LCD 16x2 Character Display, Yellow on Black Background, 5V

This is a basic 16 character by 2 line display with a snazzy black background with yellow characters. Utilizes the extremely common HD44780 parallel interface chipset. Interface code is freely available.

Quick Spec

  • Font Color: Yellow
  • Background Colour: Black
  • Power Supply: 5V
  • Logic: 5V
  • Interface: Parallel

Circuit Diagram

LCD1602-YB-5-V-CIR

Sample Code

Resources

Shipping List

  • 1 X LCD 16x2 Character Display, Yellow on Black Background, 5V


LCD 16x2 Character Display, Yellow on Black Background, 5V

  • Brand: Generic
  • Product Code: LCD1602-YB-5V
  • Weight: 0.036kg
  • Product Status : Active
  • Stock

    Warehouse Stock Status Location
    Centurion In Stock UA118
    Stellenbosch In Stock Z5057
    Bulk Location No Stock

    We ship free of charge between branches to complete your order.

  • R78.00 (Inc Tax: R89.70)
