LCD Character Display, 16X2 Black on Green, I2C Interface, 3.3V

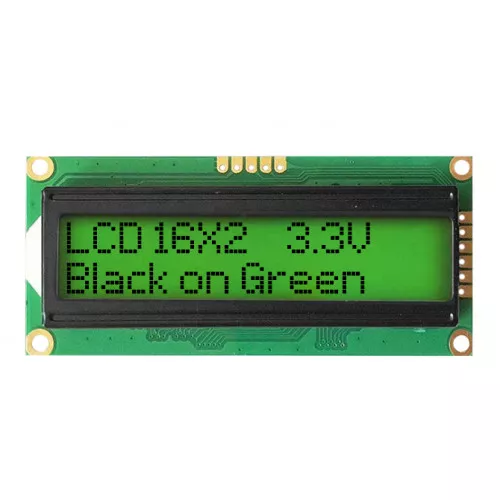

This is a 1602 serial alphanumeric LCD with black characters on a green backlight display. With AIP31068L driver IC, it only needs a 3.3V power supply to work.

Quick Spec

  • Driver IC: AIP31068L
  • 16x2 character display
  • Black characters with green backlight
  • Comes with both I2C and SPI interface
  • I2C address: 0x3E, or 62 (decimal)
  • I2C: 16-bit, 1 control byte + 1 data byte
  • SPI: 9-bit
  • Voltage supply: 3.3VDC
  • Display area: 64.5 x 14.5mm
  • Outline dimension: 80 x 36 x 13mm
  • Net Weight: 31g

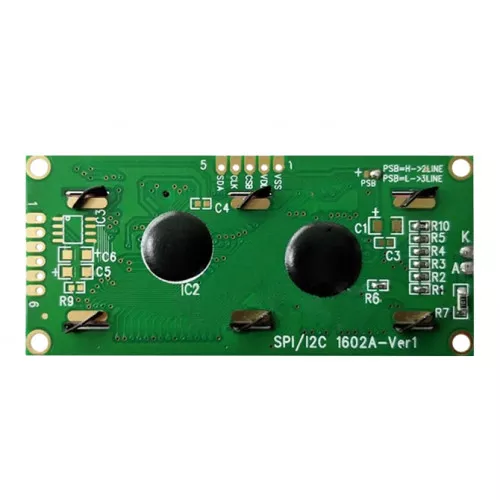

Pinout

LCM1602-A-14-A-BG-33-V-001

J1

   No.       Symbol       Function
   1    VSS    Ground (0V)
   2    VDD    Supply Voltage for Logic (3.3V)
   3    CS    Chip Select Pin:
  • "L": 3-line Interface
  • "open": I2C Interface
   4    PSB
  • "H": I2C Interface
  • "L": 3-Line Interface
   5    SCLK    Serial Clock
   6    SDA    Serial Data Input


J2

   No.       Symbol       Function
   1    VSS    Ground (0V)
   2    VDD    Supply Voltage for Logic (3.3V)
   3    CS    Chip Select Pin:
  • "L": 3-line Interface
  • "open": I2C Interface
   4    SCLK    Serial Clock
   5    SDA    Serial Data Input


Resources

Shipping List

  • 1 x LCD Character Display, 16X2 Black on Green, I2C Interface, 3.3V


LCD Character Display, 16X2 Black on Green, I2C Interface, 3.3V

  • Brand: Generic
  • Product Code: LCM1602A-14A-BG-33V
  • Weight: 0.031kg
  • Product Status : Active
  • Stock

    Warehouse Stock Status Location
    Centurion In Stock Y017
    Stellenbosch In Stock Z7036

    We ship free of charge between branches to complete your order.

  • R98.00 (Inc Tax: R112.70)
