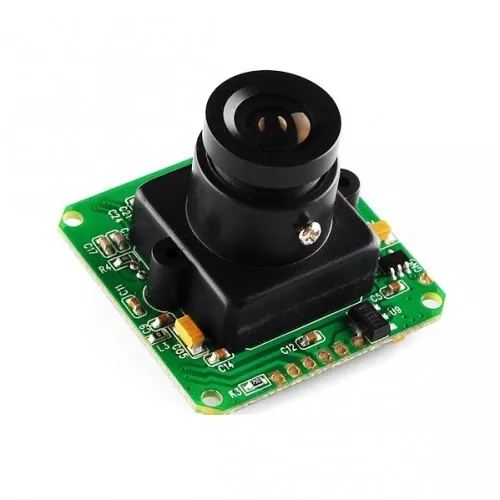

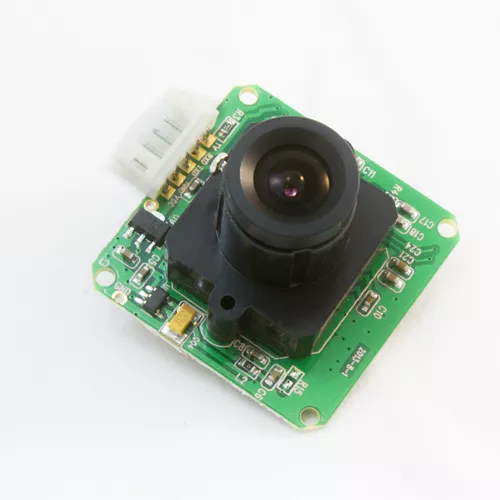

Camera TTL JPEG TTL Serial Interface

LinkSprite's latest serial port camera module can capture high resolution pictures and transport them over TTL serial, making it ideal for embedded applications. These only work reliably with a 5V power supply, even though the manual states they can work at 3.3V. If you want to use it at 3.3v, you will need a lower baud rate. Check the comments for more information.

Quick Spec

  • VGA/QVGA/160x120 resolution
  • Support capture JPEG from serial port
  • Output serial (TTL)
  • Default baud rate of serial port is 38400
  • 5V power supply
  • Size 32X32mm
  • Current consumption: 80-100mA

Resources

Shipping List

  • 1 x Camera 2MP TTL Serial Interface


Camera 2MP TTL Serial Interface

  • Brand: Linksprite
  • Product Code: LS-Y201
  • Stock

    Warehouse Stock Status Location
    Centurion In Stock U131
    Stellenbosch In Stock V24
  • R590.00 (Inc Tax: R678.50)


Tags: camera, serial interface, ttl, 2mp ttl, jpeg-cam
