• Description

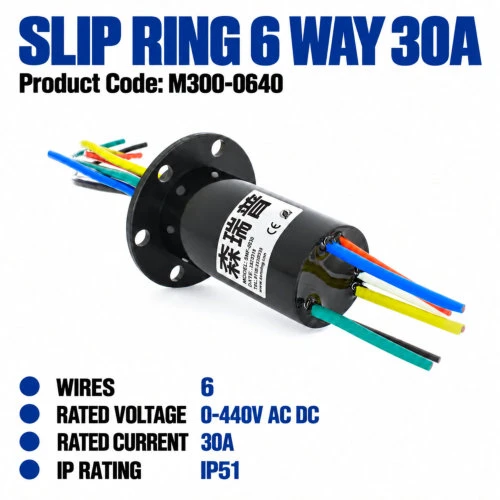

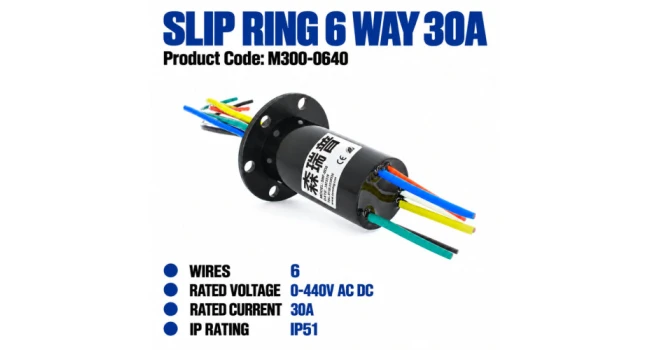

Industrial Slip Ring 6 Wire 30A

These slip rings are small and compact with OD 40mm X L 65.7mm, standard, off-the-shelf. Colour-coded lead wires are used on both the stator and rotor for simplified electrical connections. Using a 90° V-groove ring design for each ring.



With a slip ring assembly, your electronics can now twist and turn safely. Add wheel encoders, 360 degree sensors, rotating LEDs, rotors and more! We've seen a lot of people DIY slip ring's out of desperation but no longer, simply pick up one of these to solve any rotation needs you have. Inside the plastic tube is a gold plated slip ring for 6 wires. There are 6 colour coded wire sets made of 12 AWG and no matter how you twist the assembly, they will remain in continuity.

Quick Spec

• Wires: 6
• Voltage: 0 ~ 440VAC
• Overall Diameter: 40mm
• Contact Material: Precious Metal: gold-gold
• Housing Material: stainless steel
• Working Life: 10millions for ref (depends on working conditions)
• Dielectric Strength: 300VAC@50Hz, 60s
• Insulation Resistance: 1000MΩ@500VDC
• Operating Temp.: -30°C to 80°C
• Current: 30A
• Max Speed: 250RPM
• Total Length: 75.7mm
• Electrical Noise: <0.01Ω
• Torque: 0.05N.m+0.01N.m/6 wire
• Protection: IP51
• Humidity: 0 ~ 80% RH
• Lead Length: ±150mm
• Net Weight: 179g

Dimensions

Resources

• Datasheet
• Installation Guide

Shipping List

• 1 x Industrial Slip Ring 6 Wire 30A

Industrial Slip Ring 6 Wire 30A

• Brand: Generic
• Product Code: M300-0640
• Weight: 0.179kg
• Product Status : Active

Stock

Warehouse	Stock Status	Location
Centurion	No Stock
Stellenbosch	No Stock
Bulk Location	No Stock

We ship free of charge between branches to complete your order.

• R598.00 (Inc Tax: R687.70)
