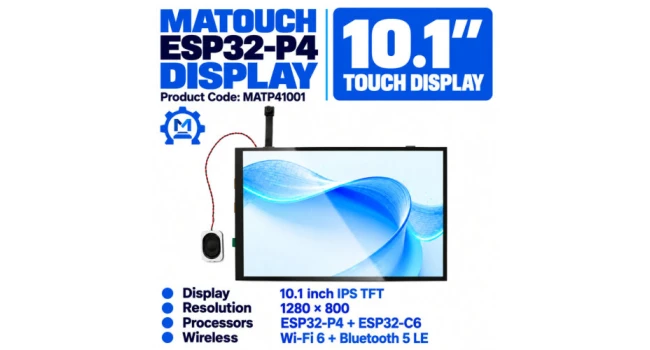

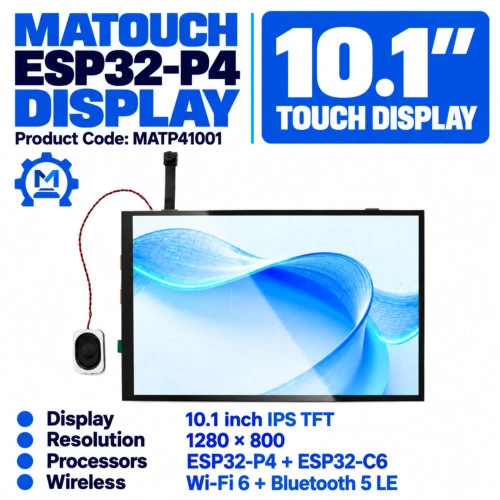

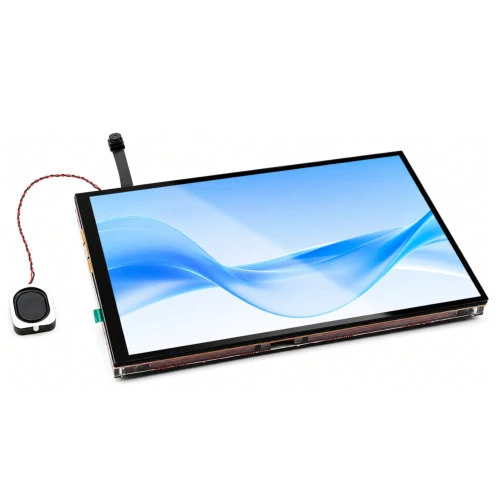

MaTouch ESP32-P4 10.1 Inch TFT Touch Display with Wi-Fi 6 & Ethernet
The MaTouch ESP32-P4 10.1-inch HMI combines a high-resolution capacitive touchscreen, dual ESP32 processors, Ethernet, Wi-Fi 6, Bluetooth, camera support, and rich multimedia features for advanced embedded applications.
Quick Spec
- Processor: Dual-core ESP32-P4 + ESP32-C6
- ESP32-P4: RISC-V up to 400MHz
- ESP32-C6: Wi-Fi/Bluetooth coprocessor
- Memory: 16MB Flash and 32MB PSRAM
- Display: 10.1-inch IPS TFT MIPI Interface
- Resoloution: 1280 × 800
- Touch Panel: 5-point capacitive touchscreen with GT911 controller
- Wi-Fi: 2.4GHz Wi-Fi 6 (802.11ax)
- Bluetooth: 5 LE
- Connectivity: Ethernet, USB-UART, USB Native, USB CDC/JTAG, USB OTG and USB Device
- Camera: 2MP MIPI
- Audio: Microphone and ES8311 audio codec
- Expansion: MicroSD slot, 26 GPIO expansion, LiPo battery connector and onboard charger
- Dimensions: 229 x 143mm

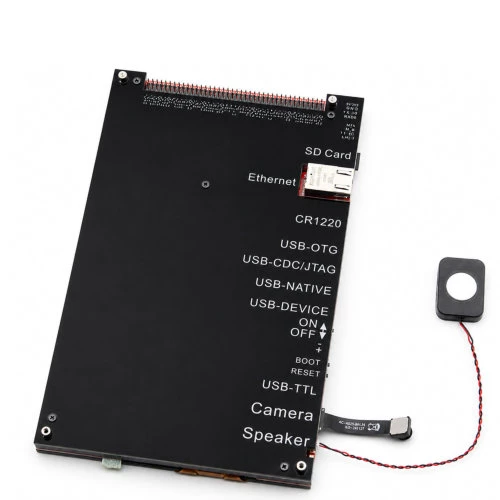

Board Layout
USB Connections
Resources
Shipping List
- 1x MaTouch ESP32-P4 10.1" TFT Touch Display with Wi-Fi 6 & Ethernet
- 1x USB Type C-to-A adapter
MaTouch ESP32-P4 10.1 Inch TFT Touch Display with Wi-Fi 6 & Ethernet
- Brand: Makerfabs
- Product Code: MATP41001
- Weight: 0.465kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | No Stock | |
| Stellenbosch | No Stock |
We ship free of charge between branches to complete your order.
-
R1,546.00 (Inc Tax: R1,777.90)
Tags: MaTouch, ESP32-P4, ESP32-C6, 10.1 Inch Display, IPS TFT, MIPI LCD, Capacitive Touch, Wi-Fi 6, Bluetooth LE, Ethernet, LVGL, Arduino, ESP-IDF, HMI, Camera Interface, USB OTG, MicroSD, Makerfabs
