MB85RC256V 32KB I2C FRAM Memory Module
The MB85RC256V module provides 32KB of durable non-volatile FRAM over I²C, delivering fast writes, exceptional endurance, selectable addressing, write protection, and broad 2.7–5.5V compatibility for embedded data storage applications and projects.
Quick Spec
- Memory Capacity: 32 KB (256 Kbit)
- Memory Type: Non-Volatile FRAM
- Interface: I²C Two-Wire Serial
- Operating Voltage: 2.7–5.5 V DC
- Clock Frequency: Up to 1 MHz
- Read/Write Endurance: 10¹² Cycles per Byte
- Data Retention: 10 Years at 85°C
- Operating Current: 200 µA Maximum at 1 MHz
- Operating Temperature: -40°C to +85°C
- Module Dimensions: 20 × 15 mm

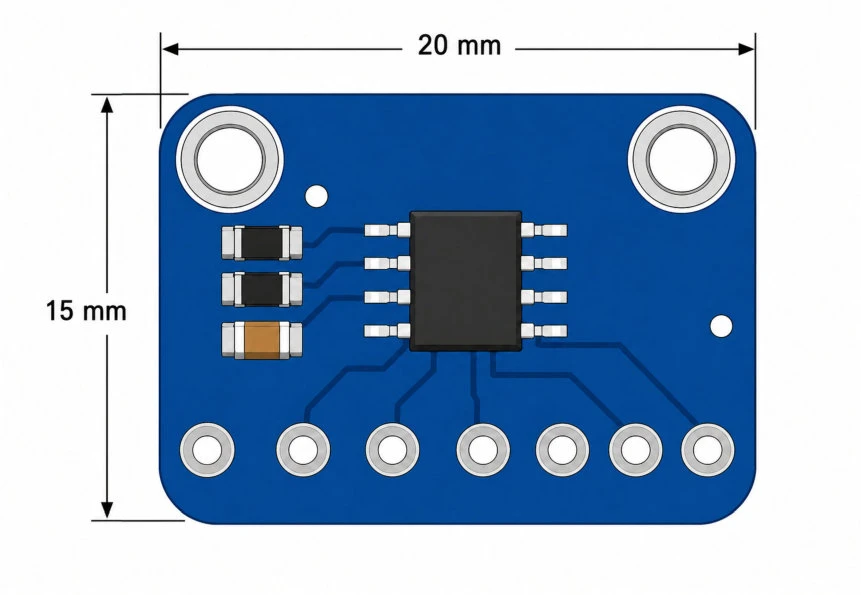

Dimensions
Shipping List
- 1x MB85RC256V 32KB I2C FRAM Memory Module
- 1x 8-Pin Male Header
MB85RC256V 32KB I2C FRAM Memory Module
- Brand: Generic
- Product Code: MB85RC256V-MOD
- Weight: 0.002kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | In Stock | EE207 |
| Stellenbosch | No Stock |
We ship free of charge between branches to complete your order.
-
R88.00 (Inc Tax: R101.20)
