DF Robot Maqueen Lite V5 micro:bit Robot

The DFRobot Maqueen Lite V5 micro:bit Robot is a classroom-ready STEM robot designed to make learning coding, robotics, and automation simple and engaging. Fully assembled and ready to use out of the box, this compact robot eliminates setup frustration and allows students to jump straight into hands-on experimentation. Built specifically for micro:bit compatibility, it provides a reliable and intuitive platform for both beginners and educators.



At its core, the Maqueen Lite V5 features an advanced onboard line-following algorithm paired with a 3-sensor array, enabling smooth and accurate navigation with minimal programming effort. This frees up the micro:bit to handle additional tasks such as obstacle avoidance, lighting effects, and sensor interaction simultaneously. Durable metal gear motors, a protected design, and detachable components ensure long-term reliability in classroom environments, while integrated RGB lighting and light sensors add interactive and creative possibilities to projects.

With support for ultrasonic sensing, servo expansion, and multiple I/O interfaces, the Maqueen Lite V5 is a versatile platform suitable for STEM education, robotics competitions, and prototyping. Its thoughtful design, ease of use, and rich feature set make it an ideal choice for building foundational skills in programming and electronics.

Quick Spec

• Operating Voltage: 3.5V – 5V DC
• Power Supply: 3 × AA batteries
• Line Sensors: 3 (with onboard algorithm)
• Light Sensors: 2 (0–1023 range)
• Motors: 2 × N20 metal motors (detachable)
• RGB LEDs: 4 × WS2812 + 2 RGB headlights
• Ultrasonic Sensor: HC-SR04 (5cm – 300cm range)

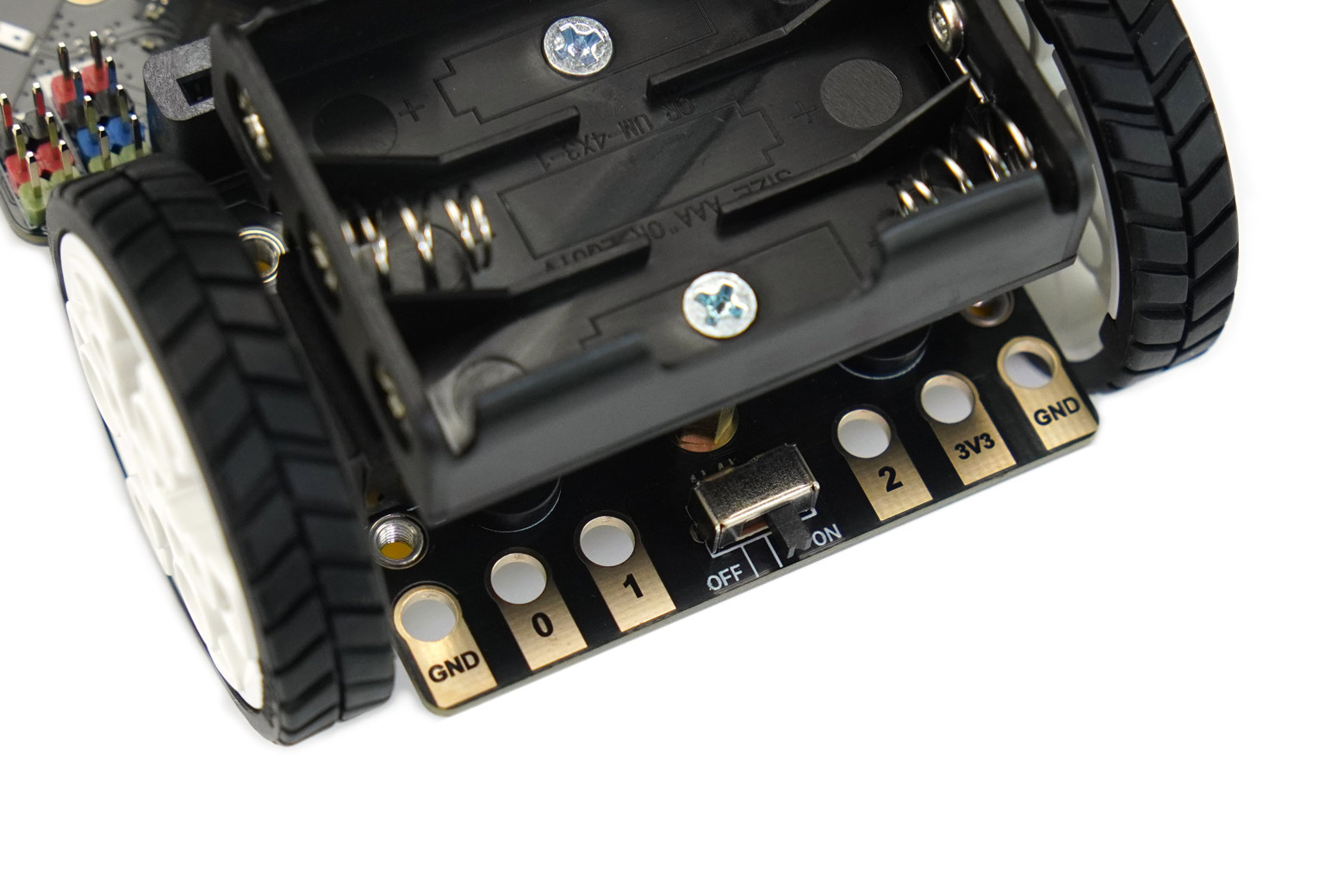

• Expansion: 3 GPIO, 2 I2C, 2 servo ports
• Additional Features: IR receiver, buzzer, firmware upgrade support

Resources

• Product Page
• Product Wiki

Shipping List

• 1 x Maqueen Lite V5 STEM Robot
• 1 x Line-tracking map
• 1 x Ultrasonic sensor
