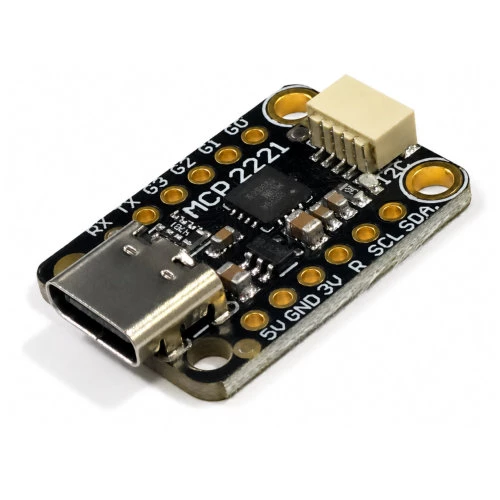

MCP2221A USB to GPIO ADC I2C UART Qwiic Module
This compact module converts USB into UART and I2C while providing four configurable GPIO pins, three ADC channels, DAC output, Qwiic connectivity, and convenient prototyping access via USB-C for prototyping.
Quick Spec
- Controller: MCP2221A
- USB Interface: Full-Speed USB 2.0, 12 Mb/s
- Serial Interface: USB-to-UART
- UART Baud Rate: 300 to 460800 baud
- I2C Interface: Master, up to 400 kHz
- GPIO: 4x Configurable Multifunction Pins
- ADC: 3x 10-Bit Analogue Inputs
- DAC: 1x 5-Bit Output Available on Two Pins
- Connectors: USB-C and 4-Pin Qwiic-Compatible
- Dimensions: 27 x 17mm

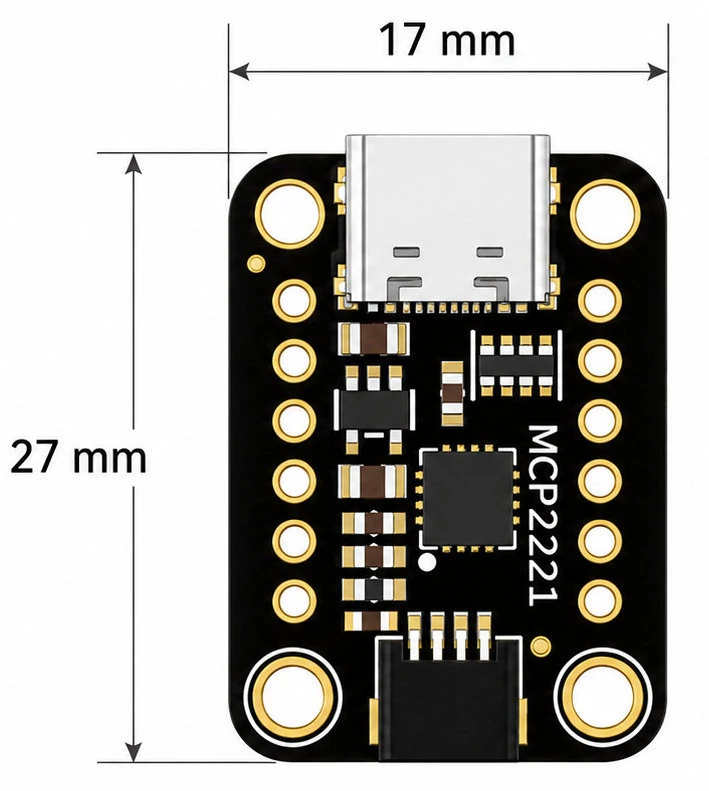

Dimensions

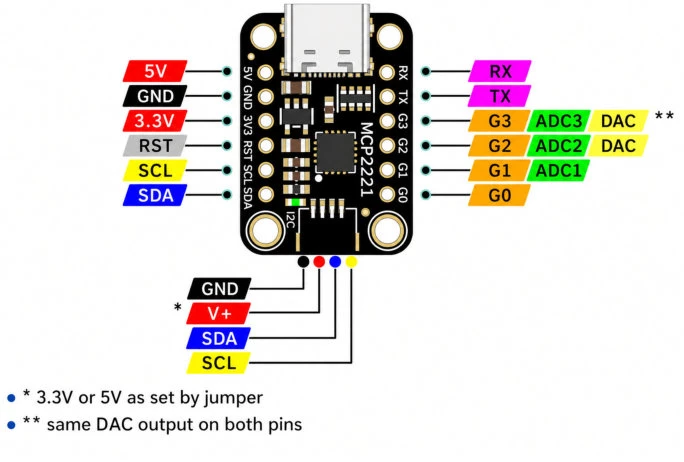

Pin Definitions
Resources

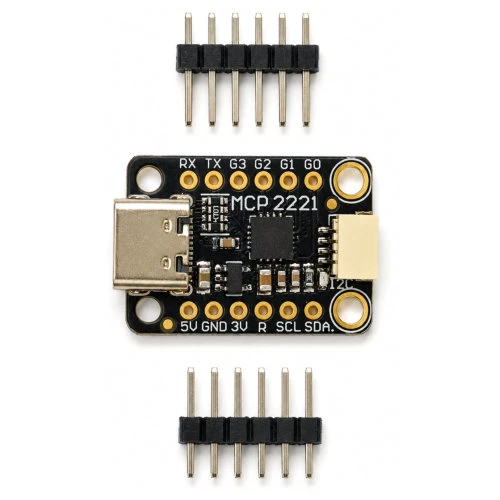

Shipping List
- 1x MCP2221A USB to GPIO ADC I2C UART Qwiic Module
- 2x 6-Pin Male Header Strips
MCP2221A USB to GPIO ADC I2C UART Qwiic Module
- Brand: Generic
- Product Code: MCP2221A-MOD
- Weight: 0.003kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | In Stock | CC100 |
| Stellenbosch | In Stock | B0288 |
We ship free of charge between branches to complete your order.
-
R130.00 (Inc Tax: R149.50)
Tags: MCP2221A, USB-C, UART, I2C, GPIO, ADC, DAC, Qwiic, serial converter, development module, MCP2221A
